Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Lux 27.5 Women's Specific Double Butted 6061-T6 Aluminum, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube
Suspension Fork
SR Suntour XCT 27.5, 80mm Travel, Coil Spring w/ Preload Adjust
Drivetrain
Rear Derailleur
Shimano Acera M360, 8 Speed
Front Derailleur
Shimano Tourney TY500, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano Altus EF-51 Easyfire, 3x8 Speed
Cassette
Shimano HG-31, 8 Speed Cassette, 11-32T
Crank
SR Suntour XCT, 42/32/22T
Bottom Bracket
Square Taper - 5pc
Chain
KMC Z82, 8 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub
32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Rims
DB SL-7 27.5" 32h Doublewall
Spokes
14g Stainless Steel
Tires
Chaoyang Hornet 27.5x2.1"
Brakes
Brakes
Tektro Aries Mechanical Disc, w/ 160mm Front and Rear Rotors
Brake Levers
Shimano Altus EF-51
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Laser Bar, Devine Women's-Specific Width 720mm, 15mm Rise, 31.8mm Bar Bore
Grips
Devine Women's-Specific D2 Kraton
Headset
FSA 1 1/8" Zero Stack w/ Drop-in Style Cartridge Bearings
Seat
Saddle
Devine Edition MTB Saddle
Seatpost
DB Laser Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

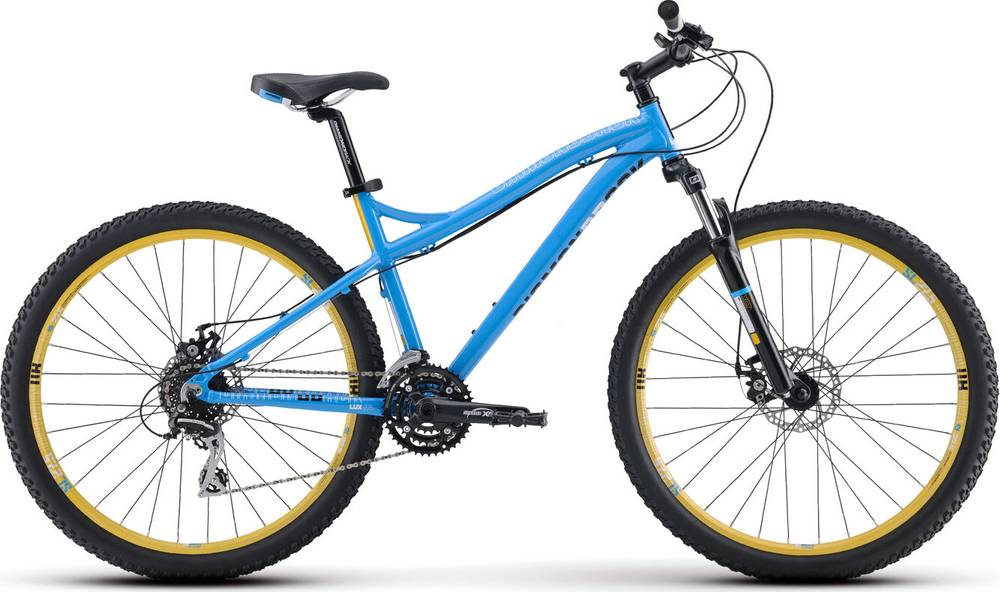

Model Overview
Lux belongs to the Diamondback Lux model. Diamondback released 26 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Diamondback Lux 1 2020 is the most economical model, with a starting price of 730$. Diamondback Lux 3 2020 on the other hand costs 1400$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Lux components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Lux are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
