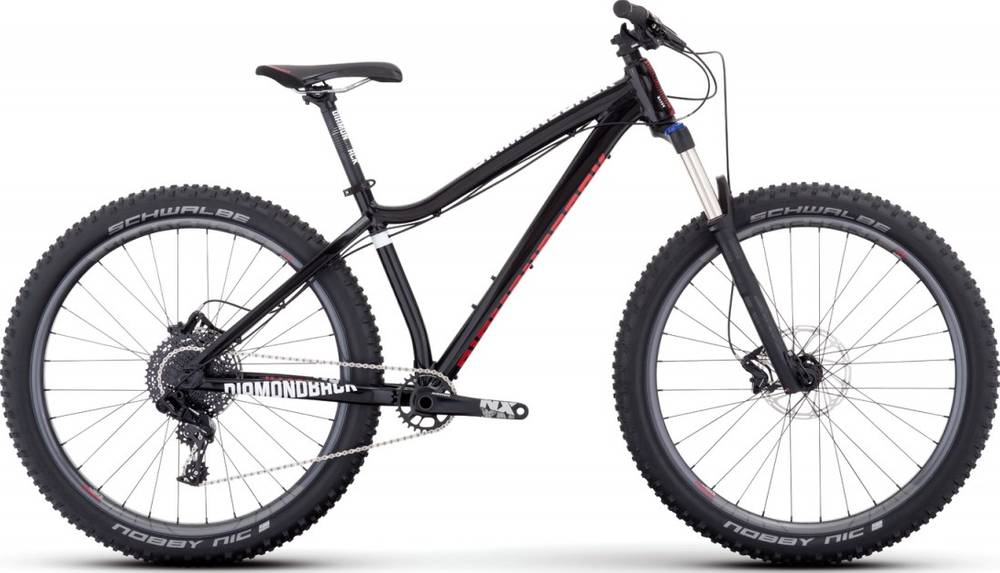

Diamondback Mason 2017
2017 Mountain
Estimate price |
1,499$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Sektor
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger
Suspension Fork
Rockshox Sektor RL 27.5+, 120mm Travel, Solo Air Spring, External Rebound Adjust w/ Turnkey Lockout, Magnesium Lowers, Alloy 1.5" Tapered Steerer Tube, 15mm Thru-axle
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
SRAM NX 1x, w/ X-Sync 28T Chain Ring
Bottom Bracket
SRAM GXP
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 38, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Schwalbe Nobby Nic 27.5x2.8", Performance, Folding, Tubless Compatible
Brakes
Brakes
SRAM Level Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM Level Hydraulic Levers w/ Tooled Reach Adjust
Cockpit
Stem
DB35 Alloy, 60mm, 35mm Bar Bore
Handlebar
DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-series Saddle
Seatpost
DB Alloy Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 655 mm | 697 mm | 715 mm | 734 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 113 mm | 89 mm | 88 mm | 89 mm |
| Stack | 599 mm | 599 mm | 599 mm | 599 mm |
| Reach | 395 mm | 413 mm | 430 mm | 450 mm |
| Top Tube Length | 565 mm | 580 mm | 609 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1084 mm | 1126 mm | 1144 mm | 1163 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 749 mm | 753 mm | 772 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mason is a Diamondback Mason model. There are 15 bikes that carry this model name. You can easily view all of the Diamondback Mason bikes models from 2017, here.
Model range prices
The most economical model, the Diamondback Mason Trail 2017 has a starting price of 999$. Diamondback Mason Pro 2017 on the other hand is the most expensive at 2499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1499$. Comparing the average cost of a Trail bike to this one, you will see that Mason price is 84.26% smaller.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Mason has a weight of 12.8 kg (28.22 lbs). In other words, this model is 1.41% lighter than the average Trail bike.
Overview of components
Fork
The RockShox Sektor is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Mason bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Mason is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Diamondback Mason bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
