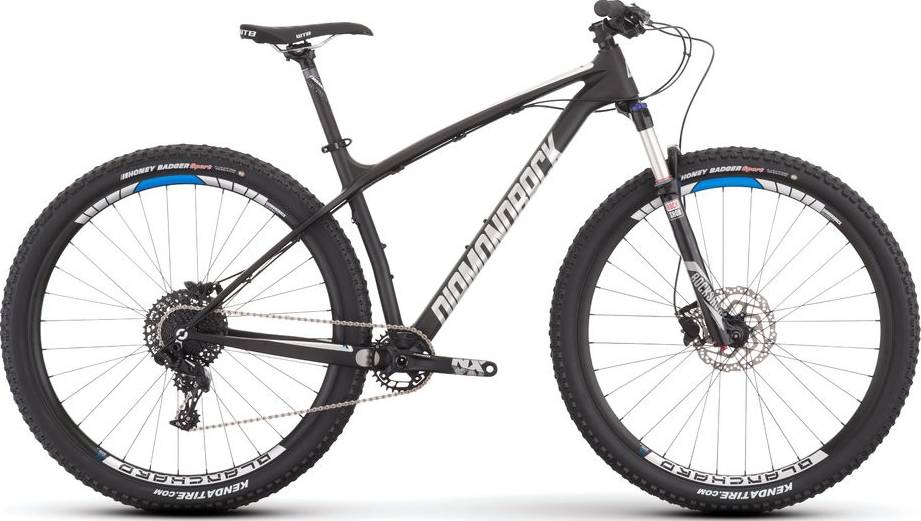

Diamondback OVERDRIVE CARBON COMP 29 2017
2017 Mountain
Estimate price |
2,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB AMMP XC MTB Carbon Technology, Full Monocoque Construction, 142x12 Carbon Drop Outs, w/ Taper Headtube, Press-Fit 30 BB
Suspension Fork
Rockshox Recon Gold RL 29", Solo Air, 100mm Travel, 32mm Stanchions, w/ External Rebound Adjust, Low Speed Compression to Lockout
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
SRAM NX 1x, w/ X-Sync 32T Chain Ring
Bottom Bracket
SRAM PF30
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h SL-7, 15MM Thru-Axle, Alloy w/ Center Lock Disc Mount,
Rear Hub
32h SL-7,142x12mm Thru-Axle, Alloy Cassette w/ Center Lock Disc mount
Rims
Diamondback Blanchard 25, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Kenda Honey Badger 29x2.2"
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M315 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback "Pro Bar", 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB4L 135mm Kraton
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-Series Saddle
Seatpost
DB Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.445 mm | 1.421 mm | 1.408 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 631 mm | 660 mm | 682 mm | 701 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 81 mm | 81 mm | 81 mm |
| Stack | 600 mm | 610 mm | 624 mm | 638 mm |
| Reach | 397 mm | 422 mm | 439 mm | 453 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1058 mm | 1087 mm | 1109 mm | 1128 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 775 mm | 785 mm | 815 mm | 833 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
OVERDRIVE CARBON COMP 29 belongs to the Diamondback Overdrive model. 37 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Diamondback Overdrive 27.5 2017 is the most affordable bike of this model and has a price of 499$. On the other hand, Diamondback Overdrive Carbon Pro 29 2017, is the most expensive and costs 2799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 2299$. Comparing this to the average Crosscountry bike price, we see that the price is 20.68% higher.
OVERDRIVE CARBON COMP 29 components
Fork
The OVERDRIVE CARBON COMP 29 comes factory-installed with the RockShox Recon Gold RL fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The OVERDRIVE CARBON COMP 29 2017 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback OVERDRIVE CARBON COMP 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
