Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 29" Butted 6061-T6 Aluminum, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs w/ Replaceable Hanger
Suspension Fork
Rockshox Reba, Solo Air, 100mm Travel, 15mm Thru-axle, w/ Rebound Adjust and Lock Out
Drivetrain
Rear Derailleur
Shimano XT M786 Shadow Plus, 10 Speed
Front Derailleur
Shimano SLX M677, Low Clamp, Side Swing, 34.9mm Clamp Diameter
Shift Levers
Shimano SLX M670, 2x10 Speed Rapidfire
Cassette
Shimano HG50, 10 Speed Cassette, 11-36T
Crank
Shimano Deore M617, 36/22T
Bottom Bracket
Shimano Outboard Bearing
Chain
KMC X10, 10 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h SL-7, 15MM Thru-Axle, Alloy w/ Center Lock Disc Mount,
Rear Hub
32h SL-7,142x12mm Thru-Axle, Alloy Cassette w/ Center Lock Disc mount
Rims
Diamondback Blanchard 25, Tubeless Compatible
Spokes
14g Stainless Steel
Tires
Kenda Honey Badger 29x2.2"
Brakes
Brakes
Shimano BR-M506 Hydraulic Disc, w/ 180mm Front /160mm Rear Center Lock Rotors
Brake Levers
Shimano BR-M447 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback "Pro Bar", 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB4L 135mm Lock On
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-series Saddle
Seatpost
DB Alloy Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1074 mm | 1104 mm | 1125 mm | 1144 mm |
| Standover Height | 767 mm | 782 mm | 810 mm | 831 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

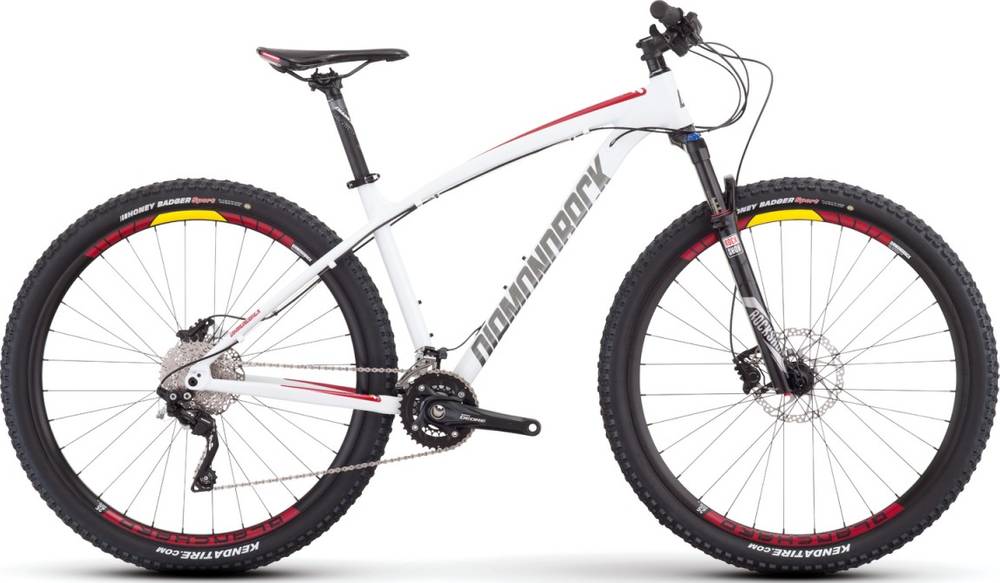

Model Overview
Overdrive Pro 29 belongs to the Diamondback Overdrive model. Diamondback launched 37 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Overdrive 27.5 2017 is the most economical model, with a starting price of 499$. Diamondback Overdrive Carbon Pro 29 2017 on the other hand costs 2799$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Overdrive Pro 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Diamondback Overdrive Pro 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
