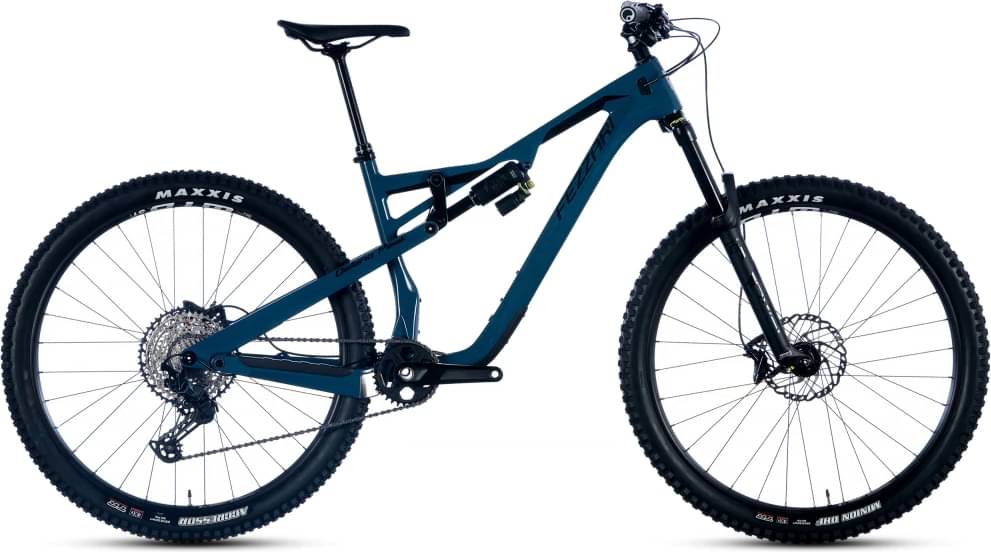

Fezzari Delano Peak Elite Eagle 2022
2022 Mountain
Estimate price |
4,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Delano Peak CleanCast Carbon TetraLink Full Suspension, 135mm travel. Internal Future-Proof cable routing on top of downtube. CleanCatch rattle-proof cable guides. SRAM Universal Derailleur Hanger. 2 Flush-mount bottle cages (S,M,L,XL)
Suspension Fork
Fox 36, Performance Elite, 150mm travel, Grip 2 Damper, 44mm offset
Rear Shock
Fox Float DPX2, Performance Elite, 3 position, 210x50, 25x8mm/30x8mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, trigger shifter
Cassette
SRAM GX Eagle PG-1275, 12 speed
Crank
SRAM GX Eagle Dub
Bottom Bracket
SRAM Dub 73 mm English Thread
Chain
SRAM GX Eagle, 12 speed
Pedals
Available Separately
Wheels
Front Hub
Front: Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rear Hub
Front: Stan's Neo; F: 110x15mm thru axle, 32 hole, 6 bolt; R: 148x12mm thru axle, 32 hole, 6 bolt, XD driver
Rims
Stan's Flow S2 29", 32 hole, disc specific, tubeless ready
Spokes
Sapim Race 14G Stainless black, alloy nipples
Tires
Front: Maxxis Minion DHF 29x2.5" 60 TPI, EXO, Tubeless Ready, Rear: Maxxis Aggressor 29x2.5" 60 TPI, EXO, Tubeless Ready
Brakes
Brakes
SRAM Code RSC, 180/180mm Centerline Rotors
Brake Levers
SRAM Code RSC
Cockpit
Stem
Fezzari FRD Charger 35, CNC 6061-T6 Alloy, 35mm clamp
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 800mm wide, 15mm riser, 9 degree backsweep,5 degree upsweep
Headset
Cane Creek 40, ZS44/28.6 ZS56/40
Seat
Saddle
Selle Italia X Superflow
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Delano Peak Elite Eagle is part of the Fezzari Delano model. Fezzari launched 40 bikes of this model so far. Take a sneak peek at all Fezzari Delano bikes models from 2022, by clicking here.
Model range prices
Fezzari Delano Peak Comp Eagle 2022 is the cheapest bike model and costs 3799$. Fezzari Delano Peak Pro 2022 is the most expensive one and costs 6899$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Fezzari Delano Peak Elite Eagle price was 4599$. Comparing the average cost of a Trail bike to this one, you will see that Delano Peak Elite Eagle price is 66.51% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Fezzari Delano Peak Elite Eagle bike has the Fox Float DPX2 model installed, and has a travel of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Delano Peak Elite Eagle bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Delano Peak Elite Eagle has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Fezzari Delano Peak Elite Eagle includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
