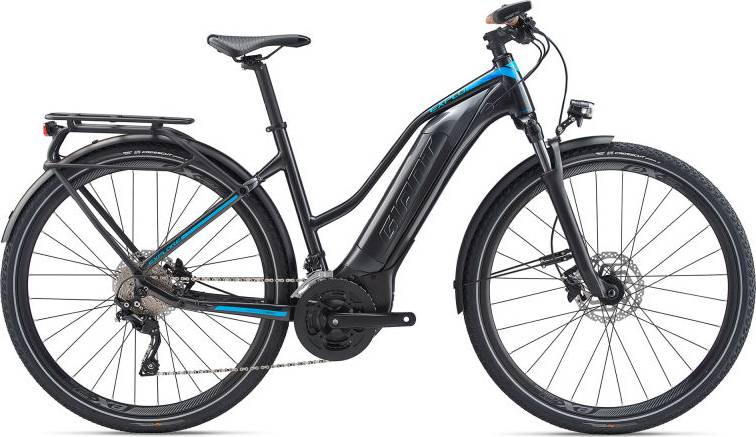

Giant Explore E+ 1 Stagger Frame 2020
2020 E-bike
Estimate price |
3,478$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 70Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
RST VIVAir E, 700c x15, 60mm travel, tappered steerer, hydraulic lockout, 15x100 axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 10-Speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano HG50-10, 11-36T, 10-Speed
Crank
Forged Alloy minimal Q-factor, 36/48T
Bottom Bracket
N/A
Chain
KMC e.10 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 15mm Axle [R] 135mm QR
Rear Hub
Giant eTracker, [F] 15mm Axle [R] 135mm QR
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Seat
Saddle
Selle Royal Vivo GTS/WMN
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, automatic support, 5-mode, 50-350% tunable support, 70Nm, powered by YAMAHA
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Remote
Giant RideControl EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm |
| Front Center | 664 mm | 673 mm |
| Rake | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm |
| Stack | 610 mm | 619 mm |
| Reach | 384 mm | 402 mm |
| Top Tube Length | 571 mm | 591 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm |
| Chainstay Length | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm |
| Wheels | 700 | 700 |
About this model
Explore E+ 1 Stagger Frame completes the Giant E Explore model. Giant launched 72 e-bikes of this model so far. You can easily view all of the Giant E Explore e-bikes models from 2020, here.
Model range prices
The most economical model, the Giant Explore E+ 4 Electric Bike 2020 has a starting price of 2432$. Giant Explore E+ 1 Pro Stagger Frame Electric Bike 2020 on the other hand is the most expensive at 3891$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2020 and its price was 3161$. In conclusion, this e-bike price is 27.46% higher than the price of the average Hybrid e-bike.
Overview of components
Fork
The RST is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Explore E+ 1 Stagger Frame e-bike is equipped with the 700c model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Explore E+ 1 Stagger Frame is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
