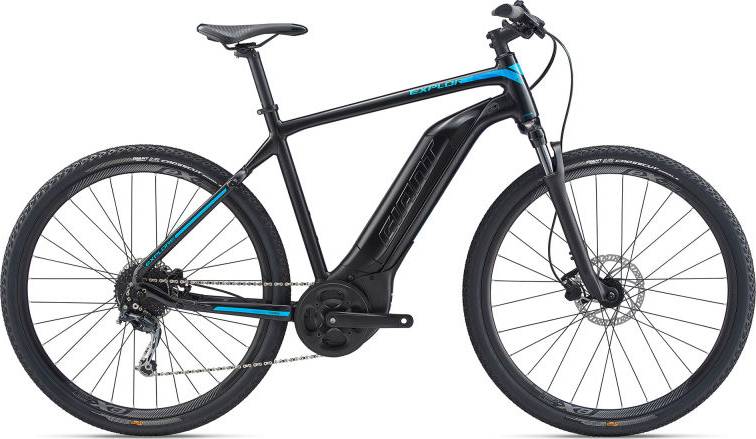

Giant Explore E+ 4 GTS 2020
2020 E-bike
Estimate price |
2,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
RST Volant T coil, 60mm travel, tappered steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
-
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG200, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
N/A
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rims
Giant eX 2, Tubeless Ready, 700c aluminium
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready W/O Reflex
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 160/180mm
Brake Levers
Tektro HD-M275
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Seat
Saddle
Selle Royal Vivo GTS/WMN
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport. Pedal assist up to 20 mph.
Battery
Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.55 mm | 1.52 mm | 1.5 mm |
| Front Center | 664 mm | 673 mm | 694 mm | 714 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm | 91.3 mm |
| Stack | 611 mm | 620 mm | 634 mm | 649 mm |
| Reach | 396 mm | 401 mm | 417 mm | 433 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm | 631 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 746 mm | 776 mm | 809 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
Model Overview
Explore E+ 4 GTS completes the Giant E Explore model. Giant released 72 e-bikes variations of this model so far. You can easily view all of the Giant E Explore e-bikes models from 2020, here.
Model range prices
The most economical model, the Giant Explore E+ 4 Electric Bike 2020 has a starting price of 2432$. Giant Explore E+ 1 Pro Stagger Frame Electric Bike 2020 on the other hand is the most expensive at 3891$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Giant Explore E+ 4 GTS price was 2500$. Comparing this to the average Hybrid e-bike price, we see that the price is 0.81% higher.
Overview of components
Fork
Giant Explore E+ 4 GTS 2020 e-bike is equipped with the RST fork, and has 60mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Explore E+ 4 GTS 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Explore E+ 4 GTS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 162 cm – 193 cm (5.31 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
