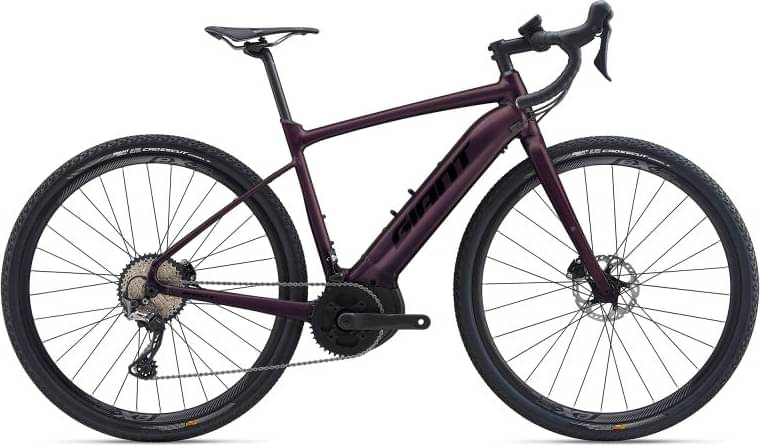

Giant Revolt E+ Pro 2021
2021 E-bike
Estimate price |
5,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, Shimano -
Suspension Rigid -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak Smart Compact 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum
Suspension Fork
Advanced-grade composite,12x100 thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano RD-RX812 GRX 11-speed
Front Derailleur
-
Shift Levers
Shimano ST-RX810 GRX Hydraulic Disc Brake 11-speed
Cassette
Shimano CS-M5100-11, 11-42, 11-Speed
Crank
Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
Bottom Bracket
N/A
Chain
KMC e.11 Turbo, EcoProteq
Pedals
Aluminum Platform
Wheels
Front Hub
Giant Performance Tracker Road, Sealed Bearing
Rear Hub
Giant Performance Tracker Road, Sealed Bearing
Rims
Giant eX 2, Tubeless-Ready, 700c Aluminum
Spokes
Sapim E-Lite [r] Race [f]
Tires
Maxxis Receptor, EXO, Skinwall, 700x40c (622x40), Tubeless, w/o Reflex
Brakes
Brakes
Shimano BR-RX810 GRX Hydraulic Disc, 160mm Rotors
Brake Levers
Shimano ST-RX810 Hydraulic Disc
Cockpit
Stem
Giant Contact
Handlebar
Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
Seat
Saddle
Giant Contact SL, Neutral
Seatpost
Giant D-Fuse SL, composite
Motor & Battery
Motor
Giant SyncDrive Pro (28 mph/45 km/h)
Battery
Giant EnergyPak Smart Compact 500Wh
Remote
Wireless display compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.57 mm | 1.59 mm | 1.59 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 609 mm | 615 mm | 636 mm | 651 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72.5 mm | 72.5 mm | 72.5 mm | 72.5 mm |
| Stack | 572 mm | 586 mm | 614 mm | 628 mm |
| Reach | 374 mm | 374 mm | 386 mm | 396 mm |
| Top Tube Length | 544 mm | 554 mm | 574 mm | 589 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 475 mm | 525 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 150 mm | 180 mm | 195 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1049 mm | 1055 mm | 1076 mm | 1091 mm |
| Bottom Bracket Drop | 85 mm | 85 mm | 85 mm | 85 mm |
| Standover Height | 741 mm | 761 mm | 803 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
Revolt E+ Pro is a Giant E Revolt model. There are 6 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Giant Revolt E+ Pro 45kmh 2021 has a starting price of 4800$. Giant Revolt E+ 2021 on the other hand is the most expensive at 6446$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 5000$. Doing a quick comparison, we notice that Revolt E+ Pro price is 37.29% higher than the average cost of a Gravel e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Giant Revolt E+ Pro 2021, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Revolt E+ Pro has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 159 cm – 200 cm (5.22 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
