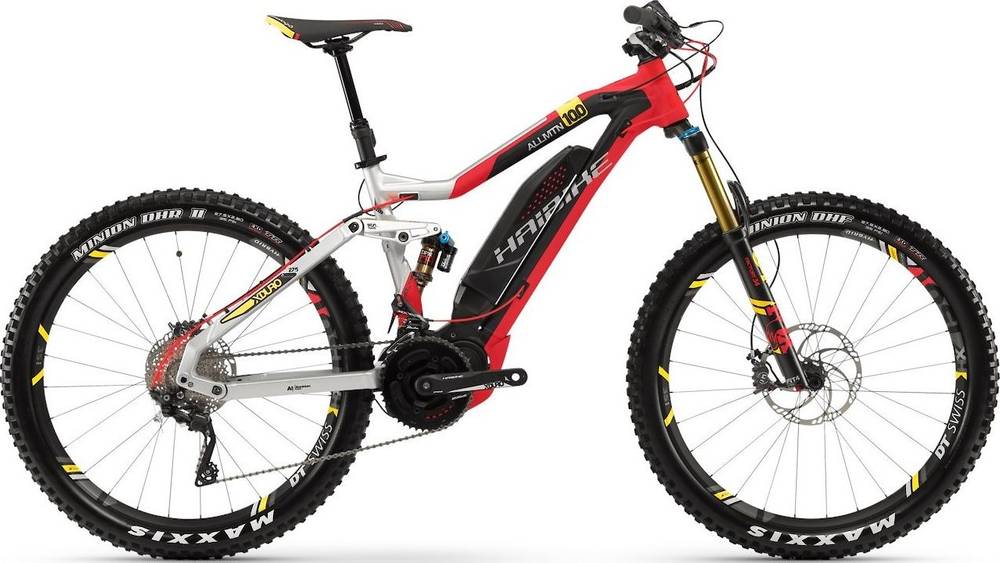

Haibike Xduro AllMtn 10.0 2018
2018 E-bike
Estimate price |
6,400$
Weight | 22.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Yamaha 500W 80Nm mid-drive -
Battery Yamaha Lithium Ion with Yamaha quick charger 4A -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Factory, Lockout, Boost
Rear Shock
FOX Float DPX2 Factory
Drivetrain
Rear Derailleur
Shimano Deore XT M786 Shadow Plus, 20-speed
Front Derailleur
Shimano SLX M7000
Shift Levers
Shimano Deore XT M780, Rapidfire, 10-speed
Cassette
SunRace CSMS2, 11-40 tooth, 10-speed
Crank
Haibike Xduro
Chain
KMC X10e
Chain Guide
N/A
Pedals
Haibike Freeride, aluminium
Wheels
Front Hub
DT Swiss HX 1501, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss HX 1501, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss HX 1501
Spokes
DT Swiss
Tires
Maxxis Minion DHF
Brakes
Brakes
Magura MT7 with 203mm rotors
Brake Levers
Magura MT7 HC, aluminium
Cockpit
Stem
Haibike Components The Stem +++, 31.8mm clamp
Handlebar
Haibike Components TheBar +++ Gravity, 780mm width
Grips
Haibike MTB Griffe
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Prologo Scratch T2.0
Seatpost
KS LEV-DX
Motor & Battery
Motor
Yamaha PW-X System, 80Nm, 500W
Battery
Yamaha Lithium Ion with Yamaha quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.46 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm | 365 mm |
| Front Center | 728 mm | 749 mm | 770 mm | 791 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 110 mm |
| Stack | 603 mm | 608 mm | 613 mm | 617 mm |
| Reach | 398 mm | 417 mm | 436 mm | 454 mm |
| Top Tube Length | 563 mm | 583 mm | 603 mm | 623 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1176 mm | 1197 mm | 1218 mm | 1239 mm |
| Bottom Bracket Drop | -10 mm | -10 mm | -10 mm | -10 mm |
| Standover Height | 763 mm | 773 mm | 783 mm | 803 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xduro AllMtn 10.0 is a Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Haibike Xduro AllMtn 6.0 2018 is the most economical model, with a starting price of 4200$. Haibike Xduro Dwnhll 10.5 2018 on the other hand costs 7000$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2018 and its price was 6400$. Doing a quick comparison, we notice that Xduro AllMtn 10.0 price is 33.75% more expensive than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, Xduro AllMtn 10.0 has a weight of 22.3 kg (49.16 lbs). In conclusion, the average Enduro e-bike weighs 5.02% more than Xduro AllMtn 10.0.
Overview of components
Fork
Haibike Xduro AllMtn 10.0 2018 e-bike is equipped with the Fox Factory Float 34 fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float DPX2 Factory rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Haibike Xduro AllMtn 10.0 2018, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Xduro AllMtn 10.0 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
