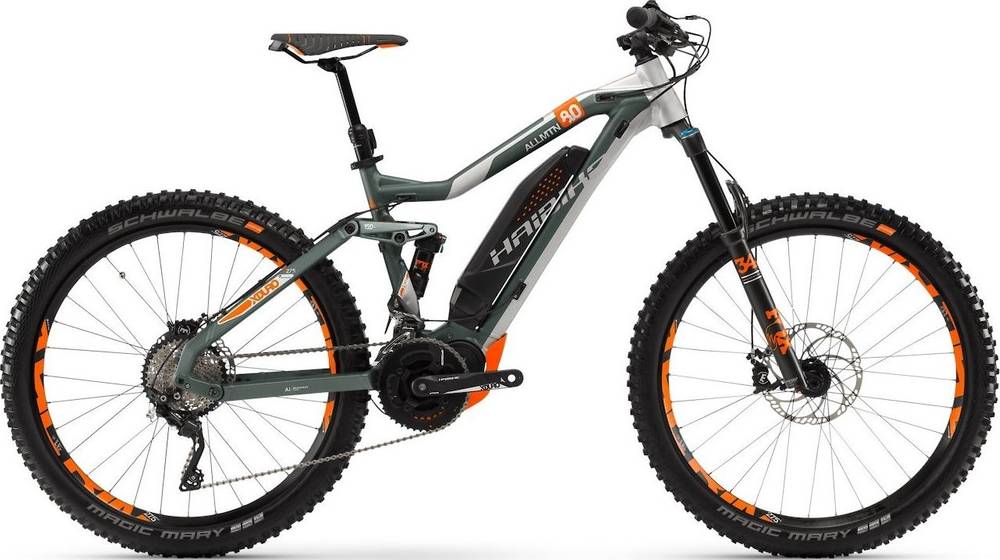

Haibike Xduro AllMtn 8.0 2018
2018 E-bike
Estimate price |
5,000$
Weight | 22.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Yamaha 500W 80Nm mid-drive -
Battery Yamaha Lithium Ion with Yamaha quick charger 4A -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance, lockout, Boost
Rear Shock
FOX Float DPS Performance EVOL
Drivetrain
Rear Derailleur
Shimano Deore XT M786 Shadow Plus, 20-speed
Front Derailleur
Shimano SLX M7000
Shift Levers
Shimano SLX M7000, 10-speed, Rapidfire
Cassette
SunRace CSMS2, 11-40 tooth, 10-speed
Crank
Haibike Xduro
Chain
KMC X10e
Chain Guide
N/A
Pedals
Haibike Freeride, aluminium
Wheels
Front Hub
Front: Haibike Components TheHub ++ thru-axle, Boost 15mm x 110mm, Rear: Haibike Components TheHub ++ thru-axle, Boost 12mm x 148mm
Rear Hub
Front: Haibike Components TheHub ++ thru-axle, Boost 15mm x 110mm, Rear: Haibike Components TheHub ++ thru-axle, Boost 12mm x 148mm
Rims
Alexrims MD40, hollow rim, aluminium
Spokes
2.0mm, black
Tires
Schwalbe Magic Mary, foldable
Brakes
Brakes
Magura MT5 with 203mm front/180mm rear rotors
Brake Levers
Magura MT5 HC, aluminium
Cockpit
Stem
Haibike Components TheStem +++, 31.8mm clamp
Handlebar
Haibike Components TheBar +++ Gravity, 780mm width
Grips
Haibike MTB Griffe
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
XLC AllMtn dropper
Motor & Battery
Motor
Yamaha PW-X System, 80Nm, 500W
Battery
Yamaha Lithium Ion with Yamaha quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.46 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm | 365 mm |
| Front Center | 728 mm | 749 mm | 770 mm | 791 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 110 mm |
| Stack | 603 mm | 608 mm | 613 mm | 617 mm |
| Reach | 398 mm | 417 mm | 436 mm | 454 mm |
| Top Tube Length | 563 mm | 583 mm | 603 mm | 623 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1176 mm | 1197 mm | 1218 mm | 1239 mm |
| Bottom Bracket Drop | -10 mm | -10 mm | -10 mm | -10 mm |
| Standover Height | 763 mm | 773 mm | 783 mm | 803 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Xduro AllMtn 8.0 belongs to the Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Take a sneak peek at all Haibike E Xduro e-bikes models from 2018, by clicking here.
Model range prices
Haibike Xduro AllMtn 6.0 2018 is the most affordable e-bike of this model and has a price of 4200$. On the other hand, Haibike Xduro Dwnhll 10.5 2018, is the most expensive and costs 7000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2018 and its price was 5000$. Doing a quick comparison, we notice that Xduro AllMtn 8.0 price is 4.49% more expensive than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Haibike Xduro AllMtn 8.0 it’s weighing 22.8 kg (50.27 lbs). At this weight, is slightly lighter than average. In conclusion, the average Enduro e-bike weighs 2.72% more than Xduro AllMtn 8.0.
Overview of components
Fork
This e-bike has the Fox Performance Float 34 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Xduro AllMtn 8.0 has a rear shock with a travel of 150mm. The model FOX Float DPS Performance EVOL is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Xduro AllMtn 8.0 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Haibike Xduro AllMtn 8.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
