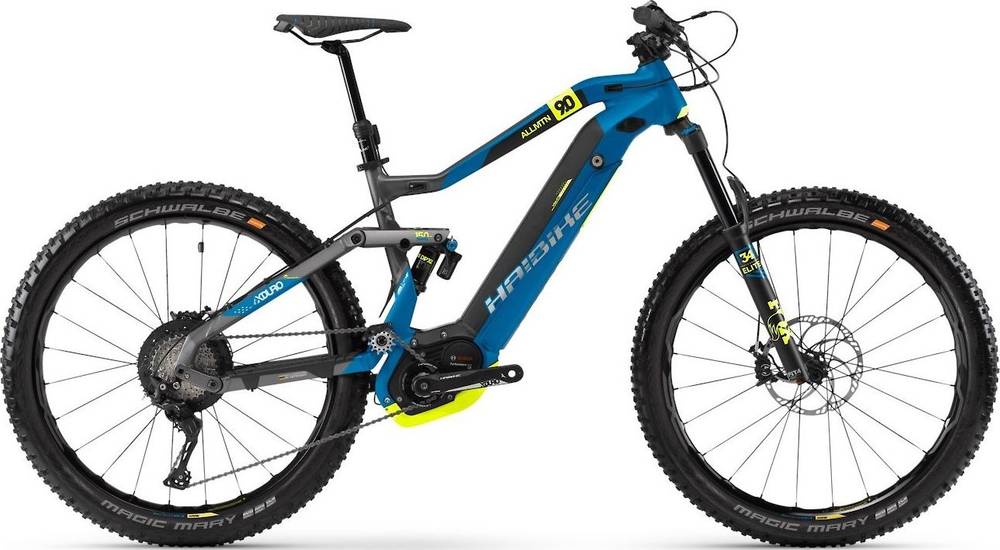

Haibike Xduro AllMtn 9.0 2018
2018 E-bike
Estimate price |
6,200$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 34
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube with Bosch quick charger 4A -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance Elite, Boost, thru-axle
Rear Shock
FOX Float DPX2 Performance Elite
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore XT M8000, 11-speed, Rapidfire
Cassette
Shimano SLX M7000, 11-46 tooth, 11-speed
Crank
Haibike Xduro
Chain
Shimano HG601
Chain Guide
N/A
Pedals
Haibike Freeride, aluminium
Wheels
Front Hub
Mavic E-XA Elite, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
Mavic E-XA Elite, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
Mavic E-XA Elite
Spokes
Mavic
Tires
Schwalbe Magic Mary, foldable
Brakes
Brakes
Magura MT5 with 203mm front/180mm rear rotors
Brake Levers
Magura MT5 HC, aluminium
Cockpit
Stem
Haibike Components TheStem +++ Gravity, 35mm clamp
Handlebar
Haibike Components TheBar +++ Gravity 35, 780mm width
Grips
Haibike MTB Griffe
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
XLC AllMtn dropper
Motor & Battery
Motor
Bosch Performance CX, 350W
Battery
Bosch PowerTube with Bosch quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 731 mm | 757 mm | 782 mm | 808 mm |
| Rake | 51 mm | 52 mm | 51 mm | 50 mm |
| Trail | 102 mm | 101 mm | 102 mm | 104 mm |
| Stack | 614 mm | 618 mm | 623 mm | 628 mm |
| Reach | 402 mm | 426 mm | 450 mm | 474 mm |
| Top Tube Length | 568 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1188 mm | 1214 mm | 1239 mm | 1265 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Xduro AllMtn 9.0 completes the Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Haibike Xduro AllMtn 6.0 2018 has a starting price of 4200$. Haibike Xduro Dwnhll 10.5 2018 on the other hand is the most expensive at 7000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 6200$. Comparing this to the average Enduro e-bike price, we see that the price is 29.57% more expensive.
Xduro AllMtn 9.0 components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Xduro AllMtn 9.0 has a rear shock with a travel of 150mm. The model FOX Float DPX2 Performance Elite is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Haibike Xduro AllMtn 9.0 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Xduro AllMtn 9.0 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
