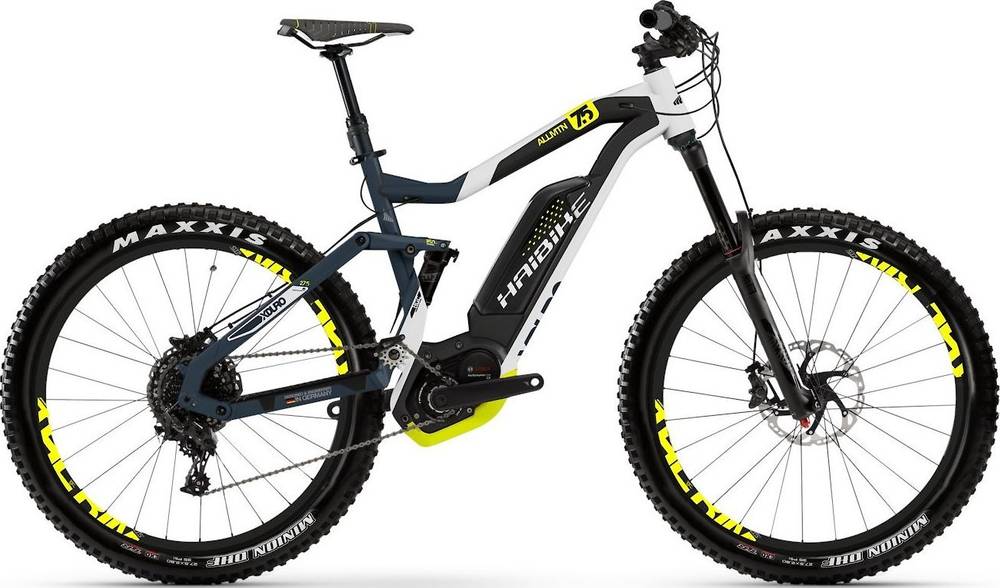

Haibike Xduro AllMtn7.5 2018
2018 E-bike
Estimate price |
4,700$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset NX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack with Bosch quick charger 4A -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Yari RC, lockout, Boost
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed, trigger switch
Cassette
SRAM PG1130, 11-42 tooth, 11-speed
Crank
N/A
Chain
SRAM PC1110
Chain Guide
N/A
Pedals
Haibike Freeride, aluminium
Wheels
Front Hub
Front: Haibike Components TheHub ++ thru-axle, Boost 15mm x 110mm, Rear: Haibike Components TheHub ++ thru-axle, Boost 12mm x 148mm
Rear Hub
Front: Haibike Components TheHub ++ thru-axle, Boost 15mm x 110mm, Rear: Haibike Components TheHub ++ thru-axle, Boost 12mm x 148mm
Rims
Alexrims MD40, hollow rim, aluminium
Spokes
2.0mm, black
Tires
Maxxis Minion DHF
Brakes
Brakes
TRP Slate G-Spec Double-Piston, 203mm front/180mm rear rotors
Brake Levers
TRP Slate G-Spec, aluminium, adjustable grip width
Cockpit
Stem
Haibike Components TheStem ++, 31.8mm clamp
Handlebar
Haibike Components TheBar ++, 780mm width
Grips
Haibike MTB Griffe
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
XLC AllMtn dropper
Motor & Battery
Motor
Bosch Performance CX, 350W
Battery
Bosch PowerPack with Bosch quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.42 mm | 1.37 mm |
| Stack | 609 mm | 614 mm | 618 mm | 623 mm |
| Reach | 398 mm | 416 mm | 435 mm | 454 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1175 mm | 1196 mm | 1216 mm | 1237 mm |
| Standover Height | 793 mm | 793 mm | 813 mm | 833 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xduro AllMtn7.5 completes the Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Haibike Xduro AllMtn 6.0 2018 is the most affordable e-bike of this model and has a price of 4200$. On the other hand, Haibike Xduro Dwnhll 10.5 2018, is the most expensive and costs 7000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4700$. If we compare this with the average Enduro e-bike cost we notice that the price is 1.81% lower.
Overview of components
Fork
This e-bike has the RockShox Yari RC fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Monarch RT3, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Xduro AllMtn7.5 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Xduro AllMtn7.5 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Haibike model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
