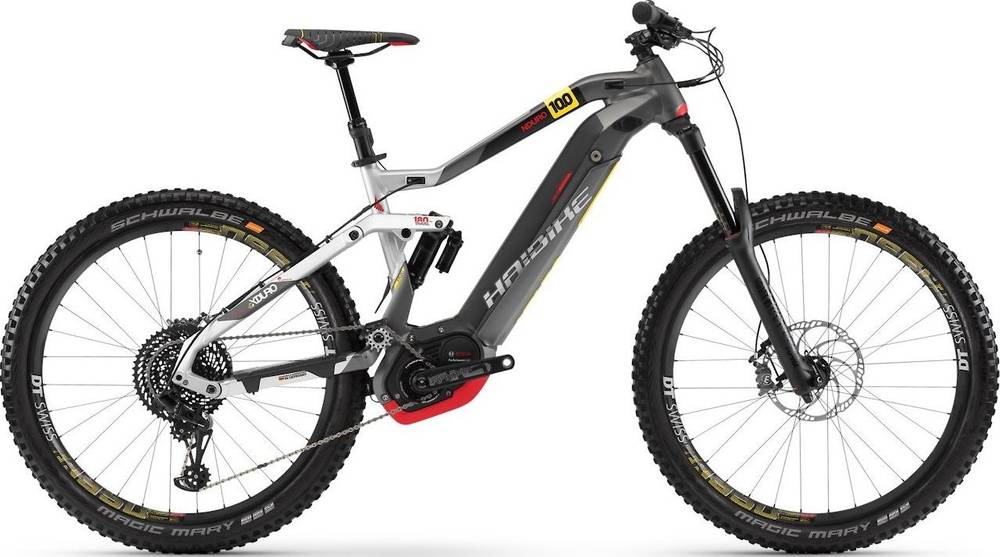

Haibike Xduro Nduro 10.0 2018
2018 E-bike
Estimate price |
7,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox Lyrik
-
Groupset EX1, e*thirteen -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube with Bosch quick charger 4A -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Lyrik RC
Rear Shock
RockShox Super Deluxe RC3
Drivetrain
Rear Derailleur
SRAM EX1, 8-speed
Front Derailleur
N/A
Shift Levers
SRAM EX1, trigger switch, 8-speed
Cassette
SRAM XG-899, 11-48 teeth, 8-speed
Crank
e*thirteen
Chain
SRAM EX1, 8-speed
Chain Guide
N/A
Pedals
Haibike Freeride, aluminum
Wheels
Front Hub
DT Swiss 240, Boost 12mm x 148mm rear
Rear Hub
DT Swiss 240, Boost 12mm x 148mm rear
Rims
DT Swiss FR1950, 27.5mm inner width, 33mm outer width
Spokes
DT competition
Tires
Schwalbe Magic Mary, foldable
Brakes
Brakes
Magura MT7 with 203mm front/180mm rear rotors
Brake Levers
Magura MT7 HC, aluminium
Cockpit
Stem
Haibike Components TheStem +++ Gravity, 35mm clamp
Handlebar
Haibike Components TheBar +++ Gravity 35, 780mm width
Grips
XLC Sport Lock-on
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
KS LEV-DX
Motor & Battery
Motor
Bosch Performance CX, 350W
Battery
Bosch PowerTube with Bosch quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.35 mm | 1.29 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm | 360 mm |
| Front Center | 746 mm | 771 mm | 797 mm | 823 mm |
| Rake | 42 mm | 42 mm | 41 mm | 42 mm |
| Trail | 119 mm | 119 mm | 121 mm | 119 mm |
| Stack | 614 mm | 618 mm | 623 mm | 628 mm |
| Reach | 415 mm | 439 mm | 463 mm | 486 mm |
| Top Tube Length | 578 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1209 mm | 1234 mm | 1260 mm | 1286 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm | -5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xduro Nduro 10.0 is a Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Haibike Xduro AllMtn 6.0 2018 has a starting price of 4200$. Haibike Xduro Dwnhll 10.5 2018 on the other hand is the most expensive at 7000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2018 and its price was 7000$. If we compare this with the average Enduro e-bike cost we notice that the price is 46.29% higher.
Xduro Nduro 10.0 components
Fork
This e-bike has the RockShox Lyrik fork installed. The fork’s travel is 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe RC3 rear shock model, which has a travel of 180mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Xduro Nduro 10.0 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Xduro Nduro 10.0 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Xduro Nduro 10.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Haibike model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
