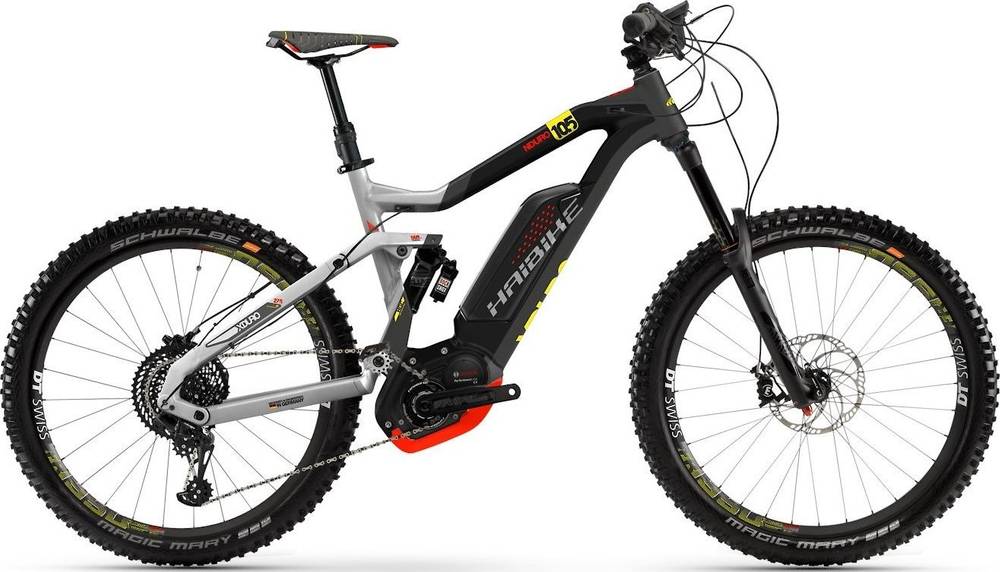

Haibike Xduro Nduro 10.5 2018
2018 E-bike
Estimate price |
6,800$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox Lyrik
-
Groupset EX1, e*thirteen -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack with Bosch quick charger 4A -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Lyrik RC
Rear Shock
RockShox Vivid Air R2C
Drivetrain
Rear Derailleur
SRAM EX1, 8-speed
Front Derailleur
N/A
Shift Levers
SRAM EX1, trigger switch, 8-speed
Cassette
SRAM XG-899, 11-48 teeth, 8-speed
Crank
e*thirteen
Chain
SRAM EX1, 8-speed
Chain Guide
N/A
Pedals
Haibike Freeride, aluminum
Wheels
Front Hub
DT Swiss 240, Boost 12mm x 148mm rear
Rear Hub
DT Swiss 240, Boost 12mm x 148mm rear
Rims
DT Swiss FR1950, 27.5mm inner width, 33mm outer width
Spokes
DT competition
Tires
Schwalbe Magic Mary, foldable
Brakes
Brakes
Magura MT7 with 203mm front/180mm rear rotors
Brake Levers
Magura MT7 HC, aluminium
Cockpit
Stem
Haibike Components The Stem +++ Gravity, 35mm clamp
Handlebar
Haibike Components TheBar +++ Gravity 35, 780mm width
Grips
XLC Sport Lock-on
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
KS LEV-DX
Motor & Battery
Motor
Bosch Performance CX, 350W
Battery
Bosch PowerPack with Bosch quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.53 mm | 1.46 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 703 mm | 729 mm | 755 mm |
| Rake | 54 mm | 54 mm | 55 mm |
| Trail | 103 mm | 103 mm | 102 mm |
| Stack | 601 mm | 605 mm | 610 mm |
| Reach | 371 mm | 395 mm | 418 mm |
| Top Tube Length | 556 mm | 581 mm | 606 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1159 mm | 1185 mm | 1211 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 816 mm | 816 mm | 806 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Xduro Nduro 10.5 is part of the Haibike E Xduro model. There are 44 e-bikes that carry this model name. You can easily view all of the Haibike E Xduro e-bikes models from 2018, here.
Model range prices
Haibike Xduro AllMtn 6.0 2018 is the cheapest e-bike model and costs 4200$. Haibike Xduro Dwnhll 10.5 2018 is the most expensive one and costs 7000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6800$. Doing a quick comparison, we notice that Xduro Nduro 10.5 price is 42.11% more expensive than the average cost of an Enduro e-bike.
Overview of components
Fork
The Xduro Nduro 10.5 comes factory-installed with the RockShox Lyrik fork. This has a travel range of 180mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Vivid Air R2C, with a travel distance of 180mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Xduro Nduro 10.5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Xduro Nduro 10.5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Haibike Xduro Nduro 10.5 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Haibike Xduro Nduro 10.5 comes with a dropper post. Therefore, climbing or descending will be a breeze.
