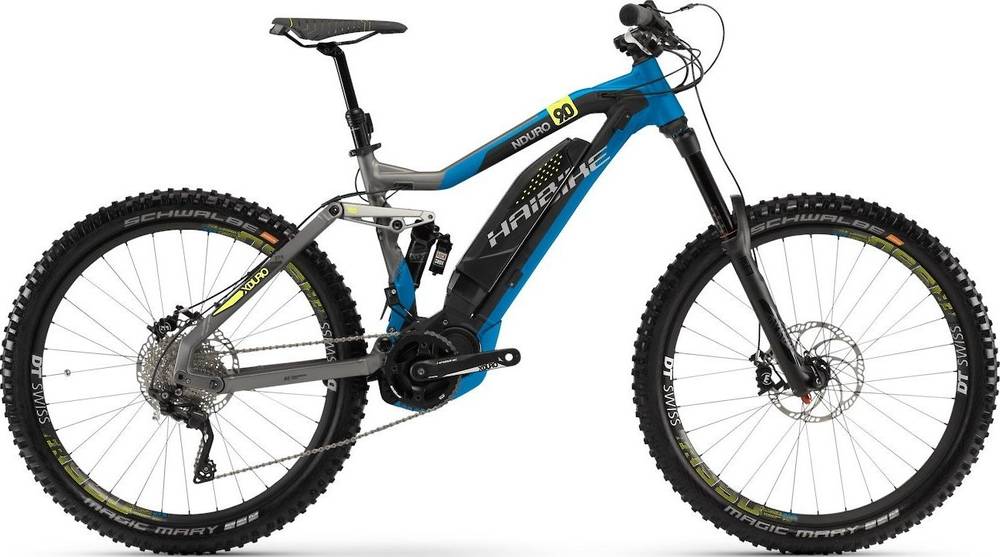

Haibike Xduro Nduro 9.0 2018
2018 E-bike
Estimate price |
6,000$
Weight | 22.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox Yari RC
-
Groupset XT -
Suspension Full -
Motor Yamaha 500W 80Nm mid-drive -
Battery Yamaha Lithium Ion with Yamaha quick charger 4A -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Yari RC
Rear Shock
RockShox Super Deluxe RC3
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 Shadow Plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore XT M8000, 11-speed, Rapidfire
Cassette
Shimano SLX M7000, 11-46 tooth, 11-speed
Crank
Haibike Components
Chain
Shimano HG601
Chain Guide
N/A
Pedals
Haibike Freeride
Wheels
Front Hub
DT Swiss 240, Boost 12mm x 148mm rear
Rear Hub
DT Swiss 240, Boost 12mm x 148mm rear
Rims
DT Swiss FR1950, 27.5mm inner width, 33mm outer width
Spokes
DT competition
Tires
Schwalbe Magic Mary, foldable
Brakes
Brakes
Magura MT5 with 203mm rotors
Brake Levers
Magura MT5 HC, aluminium
Cockpit
Stem
Haibike Components The Stem +++, 35mm clamp
Handlebar
Haibike Components TheBar +++ Gravity, 780mm width
Grips
XLC Sport Lock-on
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
XLC AllMtn dropper
Motor & Battery
Motor
Yamaha PW-X System, 80Nm, 500W
Battery
Yamaha Lithium Ion with Yamaha quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 750 mm | 771 mm | 792 mm | 812 mm |
| Rake | 64 mm | 64 mm | 64 mm | 64 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 596 mm | 601 mm | 605 mm | 610 mm |
| Reach | 413 mm | 432 mm | 451 mm | 469 mm |
| Top Tube Length | 573 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1203 mm | 1224 mm | 1245 mm | 1265 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 803 mm | 803 mm | 803 mm | 803 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xduro Nduro 9.0 belongs to the Haibike E Xduro model. 44 e-bikes variations carry this model name so far. Take a sneak peek at all Haibike E Xduro e-bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Haibike Xduro AllMtn 6.0 2018 has a starting price of 4200$. Haibike Xduro Dwnhll 10.5 2018 on the other hand is the most expensive at 7000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2018, its price was 6000$. Comparing the average cost of an Enduro e-bike to this one, you will see that Xduro Nduro 9.0 price is 25.39% more expensive.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 22.3 kg (49.16 lbs), Haibike e-bike is a bit lighter than average. In other words, this model is 5.02% lighter than the average Enduro e-bike.
Xduro Nduro 9.0 components
Fork
The Xduro Nduro 9.0 comes factory-installed with the RockShox Yari RC fork. This has a travel range of 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe RC3 rear shock model, which has a travel of 180mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Xduro Nduro 9.0 e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Xduro Nduro 9.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Haibike Xduro Nduro 9.0 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
