Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 34 Performance Series 140mm, 27.5”, 15QR
Rear Shock
Fox Float Performance Series, DPS with EVOL, 7.875 x 2.00
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Shift Levers
Shimano XT
Cassette
Shimano XT 11-46
Crank
Shimano XT M8000 175, 24mm spindle, 30t Alloy Ring
Bottom Bracket
Shimano XT MT800
Chain
CN-HG700-11
Wheels
Rims
738 Alloy, Ibis Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy
Brakes
Brakes
Shimano XT M8000 2 piston
Disk Rotors
Shimano SM-RT86 180
Cockpit
Stem
Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Handlebar
Ibis 800mm Carbon (10 or 30mm rise)
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40 ZS44/ZS56
Seat
Saddle
WTB Silverado 142
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 575 mm | 594 mm | 604 mm | 618 mm |
| Reach | 423 mm | 426 mm | 443 mm | 459 mm |
| Top Tube Length | 583 mm | 598 mm | 619 mm | 640 mm |
| Seat Tube Angle | 74.4 ° | 73.8 ° | 73.7 ° | 73.6 ° |
| Seat Tube Length | 368 mm | 425 mm | 470 mm | 514 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 66.8 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1128 mm | 1139 mm | 1160 mm | 1182 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 678 mm | 714 mm | 726 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

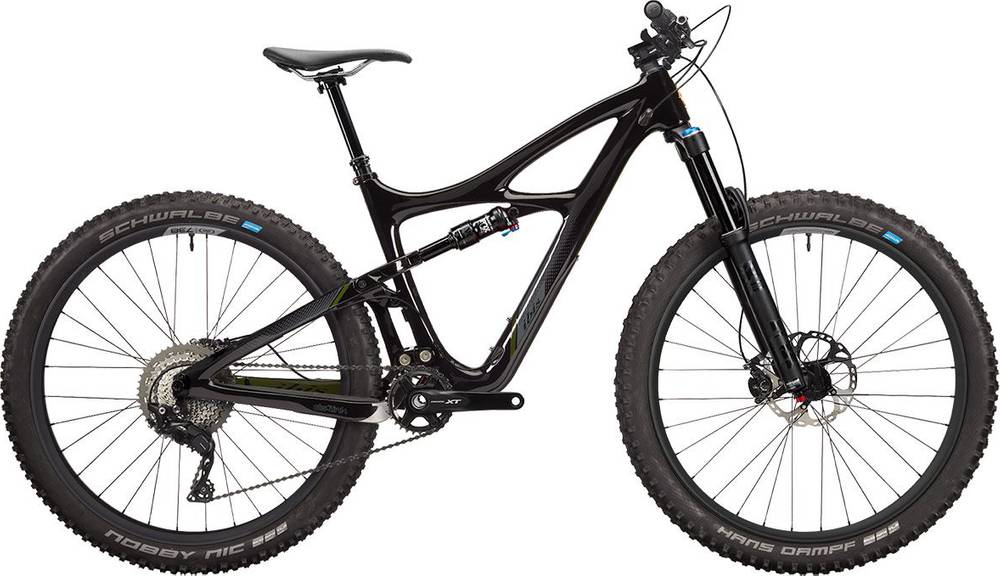

Mojo 3 XT 1x is part of the Ibis Mojo model. 76 bikes variations carry this model name so far. You can easily view all of the Ibis Mojo bikes models from 2019, here.
Model range prices
Ibis Mojo 3 NX Eagle 2019 is the most affordable bike of this model and has a price of 4099$. On the other hand, Ibis Mojo HD4 XX1 Eagle 2019, is the most expensive and costs 9599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Ibis released this model in 2019, its price was 5599$. If we compare this with the average Trail bike cost we notice that the price is 102.72% higher.
Overview of components
Fork
Ibis Mojo 3 XT 1x 2019 bike is equipped with the Fox Performance Float 34 fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Fox Float Performance Series, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Mojo 3 XT 1x are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis Mojo 3 XT 1x is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Ibis model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
