Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 153mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 36 Performance Series 160mm, 27.5”, 15QR
Rear Shock
Fox Float Performance Series DPX2 7.875 x 2.25
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM X01 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1295 EAGLE 10-50T
Crank
SRAM X01 Eagle (170mm or 175mm), DUB spindle, 32t Alloy Ring
Bottom Bracket
SRAM DUB BSA
Chain
SRAM X01 EAGLE Powerlock 12 speed chain
Wheels
Rims
738 Alloy, Ibis Hubs
Tires
Maxxis 27.5 x 2.6 Minion DHF WT
Brakes
Brakes
Shimano XT M8000 4 piston
Disk Rotors
Shimano SM-RT86 180
Cockpit
Stem
Thomson 40, 50 or 60mm, or Ibis 60 or 70mm
Handlebar
Ibis 800mm Carbon (10 or 30mm rise)
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40 ZS44/ZS56
Seat
Saddle
WTB Silverado 142
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 733 mm | 762 mm | 789 mm | 821 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 566 mm | 586 mm | 601 mm | 616 mm |
| Reach | 411 mm | 431 mm | 451 mm | 476 mm |
| Top Tube Length | 575 mm | 600 mm | 624 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 362 mm | 393 mm | 445 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 87 mm | 109 mm | 126 mm | 142 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1159 mm | 1188 mm | 1215 mm | 1247 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 689 mm | 711 mm | 725 mm | 753 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

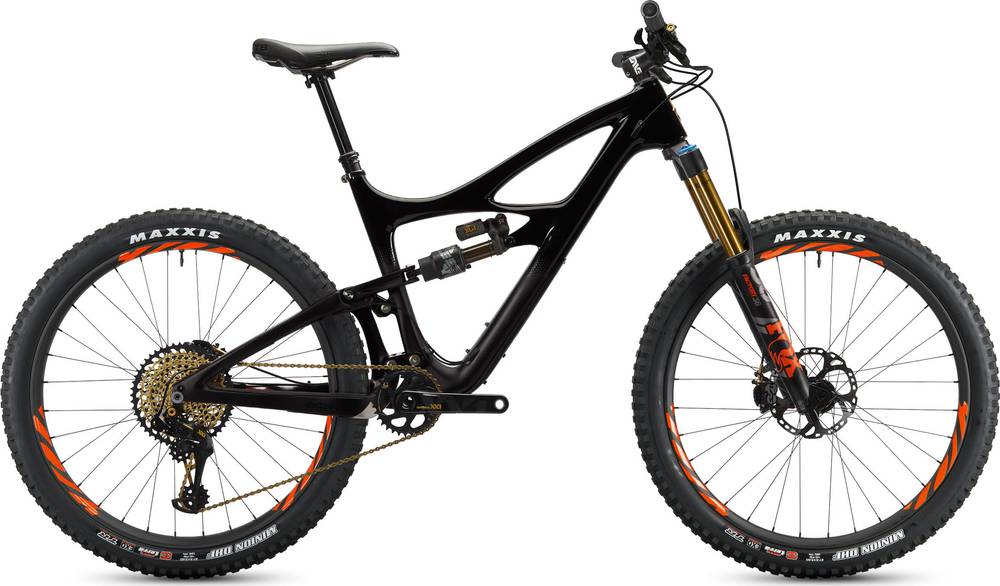

Mojo HD4 X01 AXS completes the Ibis Mojo model. 76 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Ibis Mojo 3 NX Eagle 2019 has a starting price of 4099$. Ibis Mojo HD4 XX1 Eagle 2019 on the other hand is the most expensive at 9599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7699$. Comparing this to the average Enduro bike price, we see that the price is 113.92% more expensive.
Overview of components
Fork
Ibis Mojo HD4 X01 AXS 2019 bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Mojo HD4 X01 AXS has a rear shock with a travel of 153mm. The model Fox Float Performance Series DPX2 7.875 x 2.25 is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Ibis Mojo HD4 X01 AXS 2019, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis Mojo HD4 X01 AXS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Mojo HD4 X01 AXS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Ibis model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
