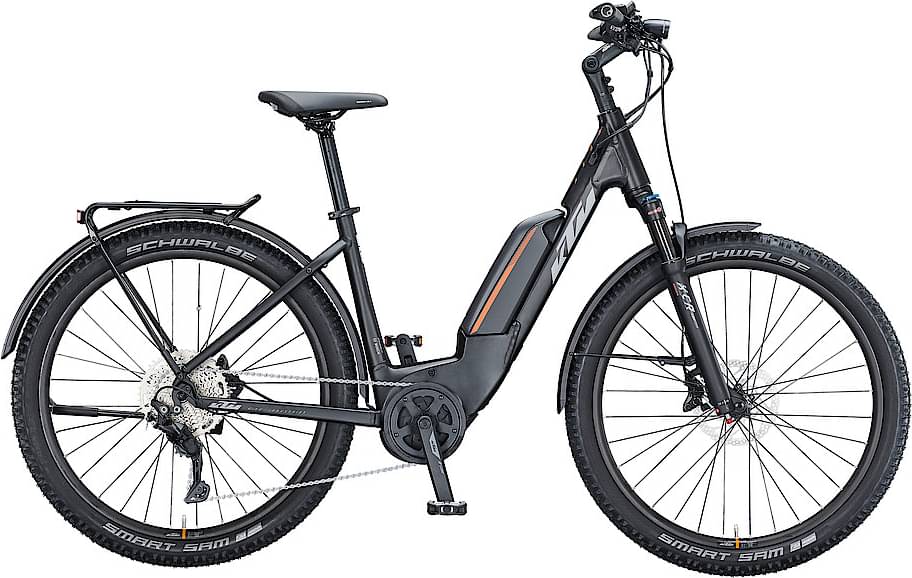

KTM MACINA AERA P272 LFC 2021
2021 E-bike
Estimate price |
3,780$
Weight | 24.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Offroad 27.5" US Alloy6061; Si-PP500Wh Bosch Gen.3 / T-0280
Suspension Fork
Suntour XCR 34 coil 27.5" LOR 80mm 15x110 taper
Drivetrain
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-46
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / 180
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Comp rizer15 680mm
Headset
Ritchey Zero Logic Comp 1.1/8"-1.5"
Seat
Saddle
Selle Royal Essenza
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerPACK 500Wh
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.67 mm | 1.68 mm | 1.66 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 638 mm | 640 mm | 650 | 669 mm |
| Rake | 40 mm | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 80 mm | 80 mm | 80 mm |
| Stack | 625 mm | 627 mm | 640 mm | 656 mm |
| Reach | 369 mm | 375 mm | 381 mm | 394 mm |
| Top Tube Length | 576 mm | 586 mm | 601 mm | 622 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1121 mm | 1123 mm | 1133 mm | 1152 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
MACINA AERA P272 LFC is part of the Ktm E Macina Aera model. There are 16 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Aera e-bikes models from 2021, here.
Model range prices
KTM MACINA AERA P272 2021 is the most affordable e-bike of this model and has a price of 3237$. On the other hand, KTM MACINA AERA 271 LFC 2021, is the most expensive and costs 4299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2021 and its price was 3450$. Doing a quick comparison, we notice that MACINA AERA P272 LFC price is 40.64% higher than the average cost of a Crosscountry e-bike.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
MACINA AERA P272 LFC weighs 24.1 kg (53.13 lbs) and is slightly heavier than the average. In other words, this model is 3.83% heavier than the average Crosscountry e-bike.
MACINA AERA P272 LFC components
Fork
The fork installed on this bike is the SunTour XCR 34 model. The travel on this model is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, KTM MACINA AERA P272 LFC 2021, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA AERA P272 LFC has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
