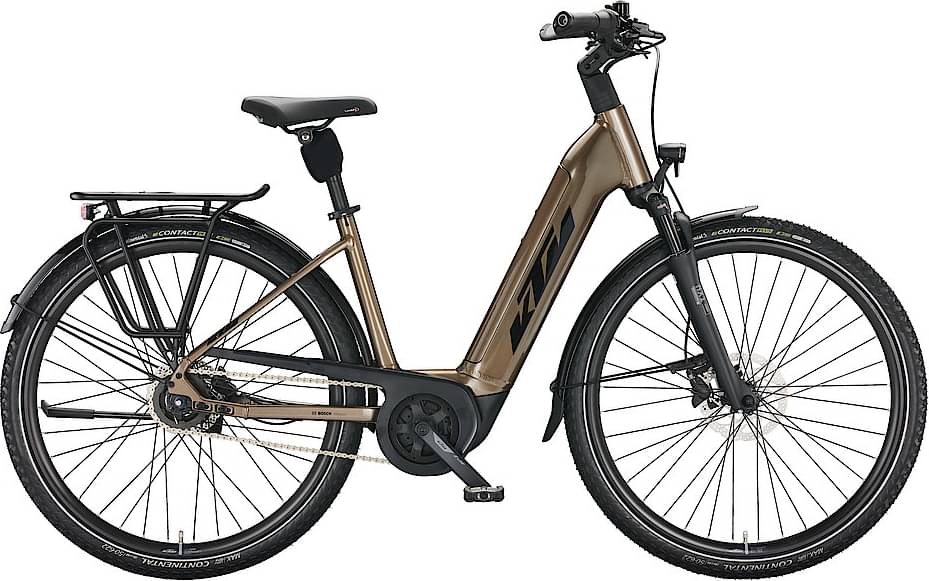

KTM MACINA CITY P610 2022
2022 E-bike
Estimate price |
4,701$
Weight | 28.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina City US Alloy6061; PT625Wh Bosch Gen.3 / T-1180
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Shift Levers
Shimano Nexus 5 Revoshifter
Cassette
ESJOT 30T
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1eHX
Chain Guide
KTM type 6 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 36H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / RT30 CL 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line Noirette Plus 660mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.64 mm | 1.66 mm | 1.65 mm |
| Front Center | 630 mm | 634 mm | 644 mm | 660 mm |
| Rake | 36 mm | 42 mm | 41 mm | 41 mm |
| Trail | 95 mm | 82 mm | 83 mm | 83 mm |
| Stack | 618 mm | 620 mm | 634 mm | 649 mm |
| Reach | 368 mm | 377 mm | 383 mm | 393 mm |
| Top Tube Length | 576 mm | 586 mm | 596 mm | 611 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1093 mm | 1097 mm | 1107 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
MACINA CITY P610 belongs to the Ktm E Macina City model. KTM launched 20 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA CITY A510 RT 2022 has a starting price of 3928$. KTM MACINA CITY 710 belt 2022 on the other hand is the most expensive at 5626$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4352$. Comparing the average cost of a Commuter e-bike to this one, you will see that MACINA CITY P610 price is 69.4% higher.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
KTM MACINA CITY P610 it’s weighing 28.4 kg (62.61 lbs). At this weight, is considerably heavier than average. In short, the average Commuter e-bike weight is 12.7% lower than this one.
Overview of components
Fork
KTM MACINA CITY P610 2022 e-bike is equipped with the Suntour fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on MACINA CITY P610 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA CITY P610 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
