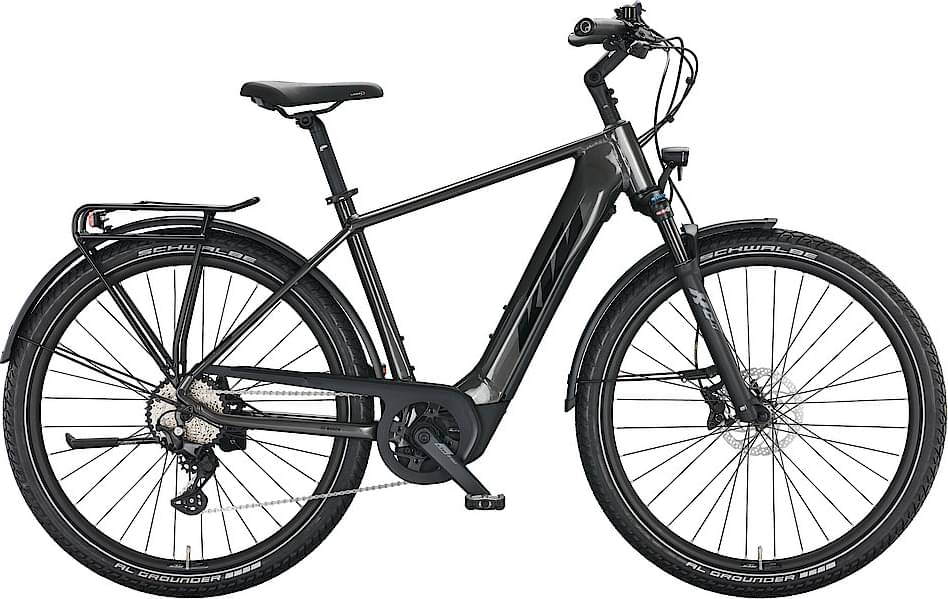

KTM MACINA GRAN 620 2022
2022 E-bike
Estimate price |
4,701$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 700c -
Travel Front 80mm -
Fork Suntour XCR 32
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-2450
Suspension Fork
Suntour XCR 32 ATB coil 29" LO 80mm
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Chain Guide
KTM type 1 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival30 32L 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
Ergotec Lady Town GH16 630mm
Headset
KTM Team Trekking 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Line 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.55 mm | 1.6 mm | 1.6 mm |
| Front Center | 666 mm | 677 mm | 671 mm | 687 mm |
| Rake | 52 mm | 52 mm | 46 mm | 46 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 586 mm | 602 mm | 626 mm | 643 mm |
| Reach | 384 mm | 389 mm | 391 mm | 401 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1125 mm | 1136 mm | 1130 mm | 1146 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 796 mm | 828 mm | 865 mm | 896 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MACINA GRAN 620 completes the Ktm E Macina Gran model. KTM released 12 e-bikes variations of this model so far. Take a sneak peek at all Ktm E Macina Gran e-bikes models from 2022, by clicking here.
Model range prices
KTM MACINA GRAN P510 (US) 2022 is the most affordable e-bike of this model and has a price of 3503$. On the other hand, KTM MACINA GRAN 710 2022, is the most expensive and costs 4777$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
General Urban e-bikes average price
If you want an acceptable General Urban e-bike you should know that the average price is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4352$. Doing a quick comparison, we notice that MACINA GRAN 620 price is 107.44% more expensive than the average cost of a General Urban e-bike.
Average weight for General Urban e-bikes
The average weight for General Urban e-bikes is 24.08 kg (53.09 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
MACINA GRAN 620 weighs 26.8 kg (59.08 lbs) and is considerably heavier than the average. In short, the average General Urban e-bike weight is 11.3% lower than this one.
MACINA GRAN 620 components
Fork
The MACINA GRAN 620 comes factory-installed with the Suntour XCR 32 fork. This has a travel range of 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The MACINA GRAN 620 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA GRAN 620 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
MACINA GRAN 620 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
