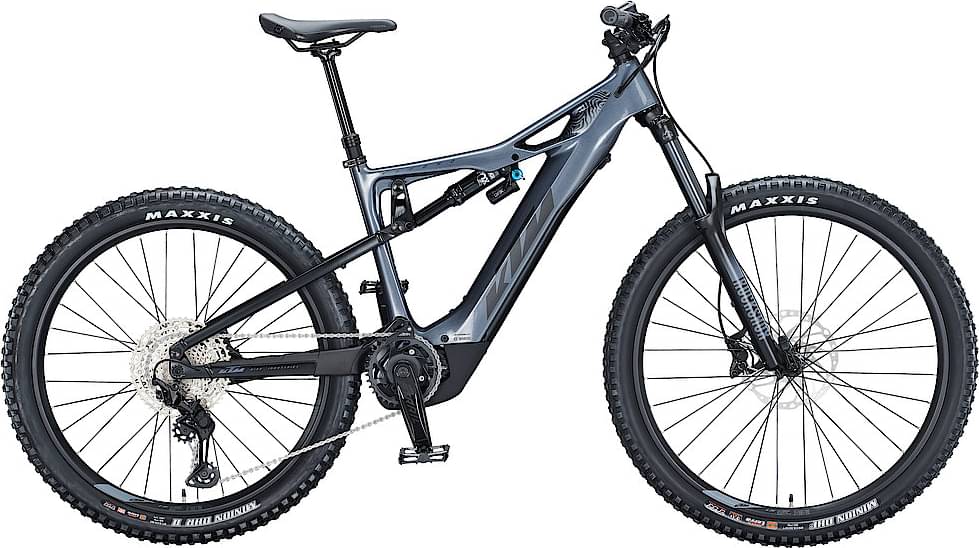

KTM MACINA KAPOHO ELITE 2021
2021 E-bike
Estimate price |
6,020$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Performance Carbon SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0146
Suspension Fork
RockShox 35 silver TK 29" 160mm 15x110
Rear Shock
FOX Float DPX2 Performance 3Position 250x70
Drivetrain
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore M6100-12
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 203 / 180
Cockpit
Stem
KTM Team Trail35
Handlebar
KTM Team Trail35 rizer25 800mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
Ergon SM10 E-Mountain
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm |
| Front Center | 774 mm | 796 mm | 829 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 125 mm | 126 mm | 126 mm |
| Stack | 601 mm | 610 mm | 623 mm |
| Reach | 443 mm | 461 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1212 mm | 1234 mm | 1267 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm |
| Standover Height | 792 mm | 794 mm | 801 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA KAPOHO ELITE is part of the Ktm E Macina Kapoho model. KTM launched 26 e-bikes of this model so far. Take a sneak peek at all Ktm E Macina Kapoho e-bikes models from 2021, by clicking here.
Model range prices
KTM MACINA KAPOHO 2973 2021 is the most affordable e-bike of this model and has a price of 4618$. On the other hand, KTM MACINA KAPOHO PRESTIGE 2021, is the most expensive and costs 8334$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5573$. Doing a quick comparison, we notice that MACINA KAPOHO ELITE price is 16.47% higher than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.8 kg (54.67 lbs), the MACINA KAPOHO ELITE model is a bit heavier than average. In conclusion, the average Enduro e-bike weighs 5.89% less than MACINA KAPOHO ELITE.
Overview of components
Fork
The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
KTM MACINA KAPOHO ELITE e-bike has the FOX Float DPX2 Performance 3Position 250×70 model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, KTM MACINA KAPOHO ELITE 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA KAPOHO ELITE comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
KTM MACINA KAPOHO ELITE e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
