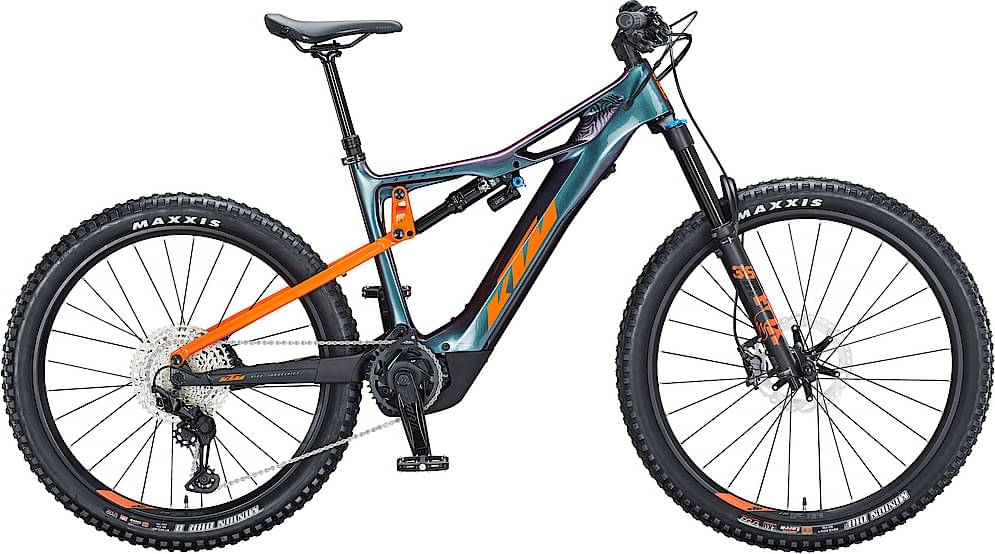

KTM MACINA KAPOHO MASTER 2021
2021 E-bike
Estimate price |
7,153$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Performance Carbon SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0146
Suspension Fork
FOX 36 Float 29" Performance e-bike 160mm
Rear Shock
FOX Float DPX2 Performance 3Position 250x70
Drivetrain
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore M6100-12
Wheels
Rims
KTM Line - Shimano Deore XT M8110BS CL 28H 110-15TA / Ambrosio E30 Trail 28H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano Deore XT M8100 / M8120 4-Piston
Disk Rotors
Shimano MT800 CL 203 / 180 Freeza
Cockpit
Stem
KTM Team Trail35 Kiox
Handlebar
KTM Team Trail35 rizer25 800mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
Ergon SM10 E-Mountain
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch KIOX TFT Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm |
| Front Center | 774 mm | 796 mm | 829 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 125 mm | 126 mm | 126 mm |
| Stack | 601 mm | 610 mm | 623 mm |
| Reach | 443 mm | 461 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 635 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1212 mm | 1234 mm | 1267 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm |
| Standover Height | 792 mm | 794 mm | 801 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA KAPOHO MASTER is a Ktm E Macina Kapoho model. There are 26 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
KTM MACINA KAPOHO 2973 2021 is the most affordable e-bike of this model and has a price of 4618$. On the other hand, KTM MACINA KAPOHO PRESTIGE 2021, is the most expensive and costs 8334$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6529$. If we compare this with the average Enduro e-bike cost we notice that the price is 36.45% more expensive.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.2 kg (53.35 lbs), KTM e-bike is slightly heavier than average. To sum up, it’s 3.33% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
This e-bike has the Fox Performance Float 36 fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX Float DPX2 Performance 3Position 250×70 model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the MACINA KAPOHO MASTER model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
MACINA KAPOHO MASTER comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
KTM MACINA KAPOHO MASTER includes a dropper post. Therefore, climbing or descending will be a breeze.
