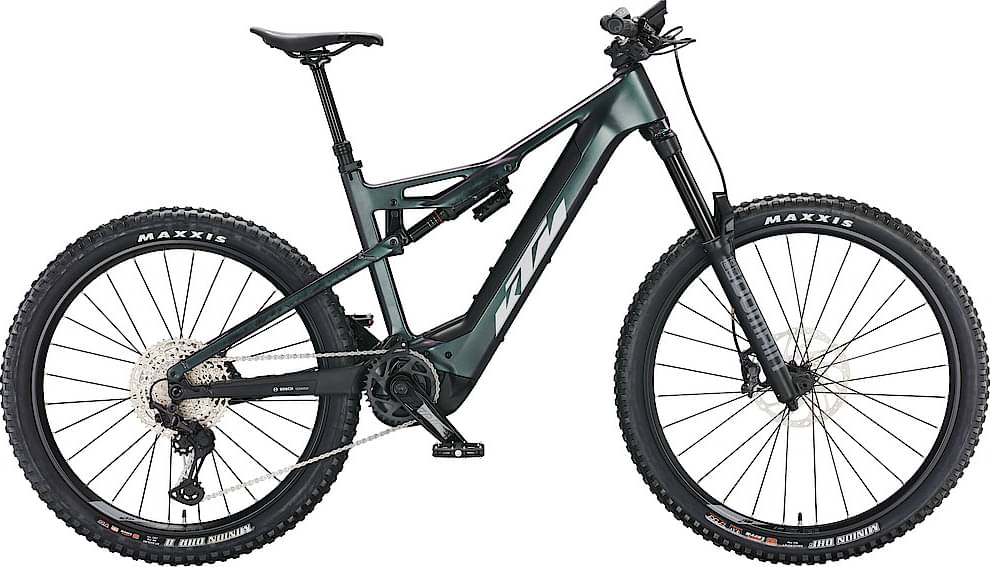

KTM MACINA PROWLER MASTER 2022
2022 E-bike
Estimate price |
7,683$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset XT -
Suspension Full -
Motor mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH; PT750 Bosch Gen.4 / M-2236
Suspension Fork
RockShox Domain RC 29" 180mm
Rear Shock
RockShox SuperDeluxe Select+ 250x75
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Wheels
Rims
KTM Line
Brakes
Brakes
Shimano Deore XT M8100 / M8120 4-Piston
Disk Rotors
Shimano RT64 CL 203 / EM600 CL 180
Cockpit
Stem
KTM Team Trail35
Handlebar
KTM Team Trail35 rizer25 800mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle San Marco GND Supercomfort
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
MOTOR
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.37 mm |
| Front Center | 784 mm | 806 mm | 829 mm |
| Rake | 47 mm | 46 mm | 45 mm |
| Trail | 130 mm | 131 mm | 133 mm |
| Stack | 608 mm | 618 mm | 632 mm |
| Reach | 428 mm | 446 mm | 463 mm |
| Top Tube Length | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1222 mm | 1244 mm | 1267 mm |
| Bottom Bracket Drop | -3 mm | -3 mm | -3 mm |
| Standover Height | 812 mm | 814 mm | 816 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA PROWLER MASTER is a Ktm E Macina Prowler model. 14 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA PROWLER PRO 2022 is the most affordable e-bike of this model and has a price of 6476$. On the other hand, KTM MACINA PROWLER EXONIC 2022, is the most expensive and costs 11360$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 7113$. If we compare this with the average Enduro e-bike cost we notice that the price is 48.65% higher.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
MACINA PROWLER MASTER weighs 25.4 kg (56 lbs) and is a bit heavier than the average. To sum up, it’s 8.45% heavier than the average weight of Enduro e-bikes.
MACINA PROWLER MASTER components
Fork
The fork installed on this bike is the RockShox Domain model. The travel on this model is 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the RockShox SuperDeluxe Select+ 250×75 model, with a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the MACINA PROWLER MASTER model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA PROWLER MASTER comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The KTM model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
