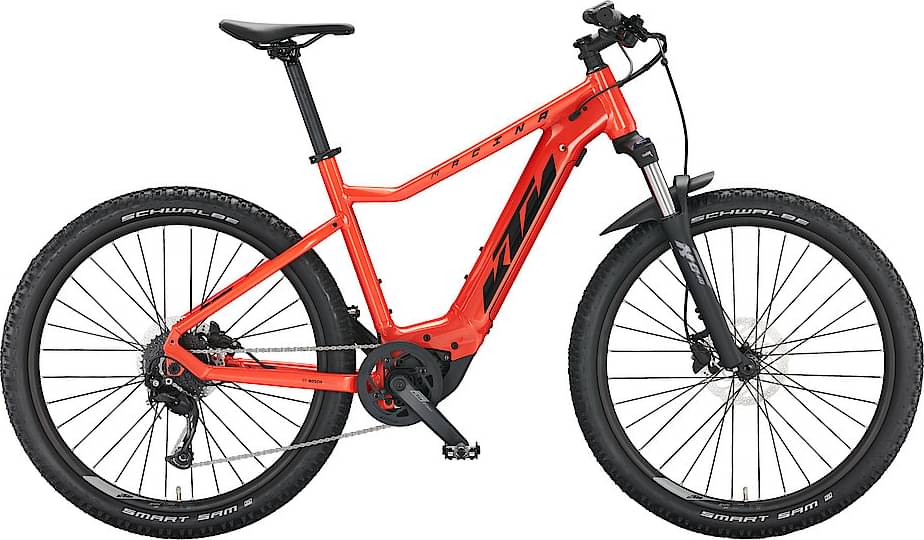

KTM MACINA RACE 572 2022
2022 E-bike
Estimate price |
3,669$
Weight | 22.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 27.5" Alloy6061; PT500Wh Bosch Gen.4 / M-1776
Suspension Fork
Suntour XCM 34 coil 27.5" NLO 100mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 700mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.508 mm | 1.514 mm | 1.48 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Front Center | 637 mm | 637 mm | 657 mm |
| Rake | 35 mm | 40 mm | 39 mm |
| Trail | 99 mm | 87 mm | 88 mm |
| Stack | 588 mm | 595 mm | 607 mm |
| Reach | 390 mm | 393 mm | 410 mm |
| Top Tube Length | 570 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1078 mm | 1078 mm | 1098 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 732 mm | 736 mm | 752 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
MACINA RACE 572 is a Ktm E Macina Race model. There are 12 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA RACE 592 2022 is the most affordable e-bike of this model and has a price of 3397$. On the other hand, KTM MACINA RACE 571 2022, is the most expensive and costs 3821$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, KTM MACINA RACE 572 price was 3397$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 38.48% more expensive.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, MACINA RACE 572 has a weight of 22.6 kg (49.82 lbs). In other words, this model is 2.7% lighter than the average Crosscountry e-bike.
MACINA RACE 572 components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The MACINA RACE 572 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA RACE 572 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
MACINA RACE 572 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
