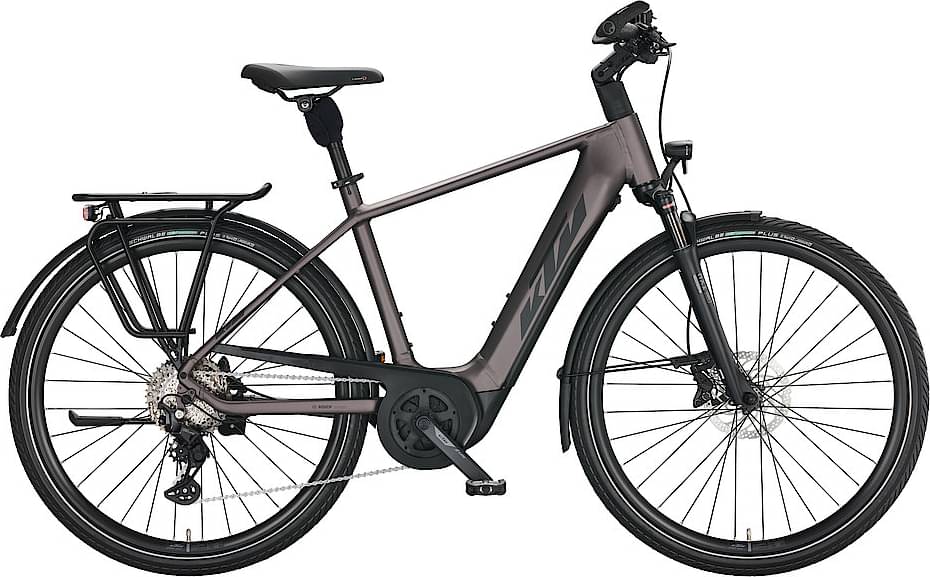

KTM MACINA TOUR P610 2022
2022 E-bike
Estimate price |
4,357$
Weight | 27.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.3 / T-1150
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Chain Guide
KTM type 6 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / EM300 CL 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line rizer20 640mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.52 mm |
| Front Center | 636 mm | 647 mm | 657 mm | 672 mm |
| Rake | 37 mm | 36 mm | 36 mm | 36 mm |
| Trail | 88 mm | 89 mm | 89 mm | 89 mm |
| Stack | 576 mm | 592 mm | 609 mm | 627 mm |
| Reach | 393 mm | 399 mm | 403 mm | 413 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1096 mm | 1107 mm | 1117 mm | 1133 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 783 mm | 806 mm | 838 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA TOUR P610 completes the Ktm E Macina Tour model. KTM launched 11 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
KTM MACINA TOUR P510 2022 is the cheapest e-bike model and costs 3556$. KTM MACINA TOUR CX 610 NYON 2022 is the most expensive one and costs 4458$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, KTM MACINA TOUR P610 price was 4034$. In conclusion, this e-bike price is 62.66% higher than the price of the average Hybrid e-bike.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, MACINA TOUR P610 has a weight of 27.2 kg (59.97 lbs). In conclusion, the average Hybrid e-bike weighs 14.33% less than MACINA TOUR P610.
Overview of components
Fork
The Suntour is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The MACINA TOUR P610 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
KTM MACINA TOUR P610 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
