Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
125cm - 145cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminium
Suspension Fork
SR XCT L24, coil, 80mm, lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
microSHIFT Advent
Front Derailleur
N/A
Shift Levers
microSHIFT Advent, 1x8
Cassette
microSHIFT Advent, 12x42
Crank
Alloy forged, 30t, 140mm
Bottom Bracket
Cartridge
Chain
KMC Z8.3
Pedals
Platform
Wheels
Front Hub
Giant Disc, 28h, QR, alloy, disc
Rear Hub
Giant Disc, 28h, QR, alloy, disc
Rims
Giant 24", alloy, 28mm inner width
Spokes
Stainless, 14g
Tires
Kenda Karma, 24x2.2"
Brakes
Brakes
Tektro HD-J285, hydraulic [F]160mm, [R]160mm rotors
Brake Levers
Tektro HD-J285
Cockpit
Stem
Forged alloy, 0-degree
Handlebar
Giant Sport, alloy, 31.8mm
Grips
Giant Junior
Seat
Saddle
Giant Jr. Sport
Seatpost
Alloy, two-bolt, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.56 mm |
| Front Center | 570 mm |
| Rake | 42 mm |
| Trail | 79.4 mm |
| Stack | 526 mm |
| Reach | 337 mm |
| Top Tube Length | 497 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 412 mm |
| Wheelbase | 980 mm |
| Bottom Bracket Drop | 30 mm |
| Wheels | 24" |
| Rider Min Height | 125 cm |
| Rider Max Height | 145 cm |
About this model

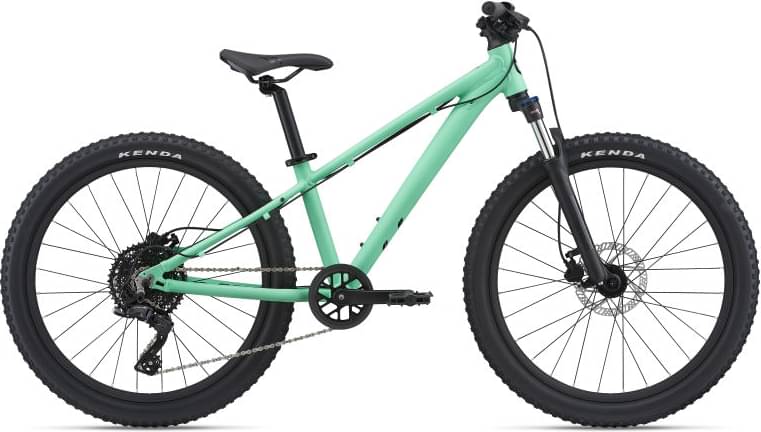

STP 24 FS Liv belongs to the Liv Stp model. Liv launched 12 bikes of this model so far. Take a sneak peek at all Liv Stp bikes models from 2022, by clicking here.
Model range prices
Liv STP 20 FS Liv 2022 is the most economical model, with a starting price of 445$. Liv STP 26 Liv 2022 on the other hand costs 955$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Youth bikes
According to our calculations, the average cost of a Youth bike that is reliable is 278$. However, you could also get a good Youth bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 541$. In conclusion, this bike price is 94.6% more expensive than the price of the average Youth bike.
STP 24 FS Liv components
Fork
The fork installed on this bike is the SunTour XCT model. The travel on this model is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the STP 24 FS Liv model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Liv STP 24 FS Liv is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
