Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 24" -
Groupset Altus, Shimano -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
One Size
125cm - 145cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
alloy, rigid
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Front Derailleur
N/A
Shift Levers
Shimano REVOSHIFT, 1x7
Cassette
Shimano CS-HG200, 12x32
Crank
alloy forged, 30t, 140mm
Bottom Bracket
cartridge
Chain
KMC Z7
Pedals
platform
Wheels
Front Hub
Giant Disc, 28h, QR, alloy, disc
Rear Hub
Giant Disc, 28h, QR, alloy, disc
Rims
Giant 24", alloy, 28mm inner width
Spokes
stainless, 14g
Tires
Kenda Karma, 24x2.6"
Brakes
Brakes
mechanical disc [F]160mm, [R]160mm rotors
Brake Levers
alloy, junior
Cockpit
Stem
forged alloy, 0-degree
Handlebar
Giant Sport, alloy, 31.8mm
Grips
Giant Junior
Seat
Saddle
Giant Jr. Sport
Seatpost
alloy, two-bolt, 30.9x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.56 mm |
| Front Center | 570 mm |
| Rake | 42 mm |
| Trail | 79.4 mm |
| Stack | 526 mm |
| Reach | 337 mm |
| Top Tube Length | 497 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 412 mm |
| Wheelbase | 980 mm |
| Bottom Bracket Drop | 30 mm |
| Wheels | 24" |
| Rider Min Height | 125 cm |
| Rider Max Height | 145 cm |
About this model

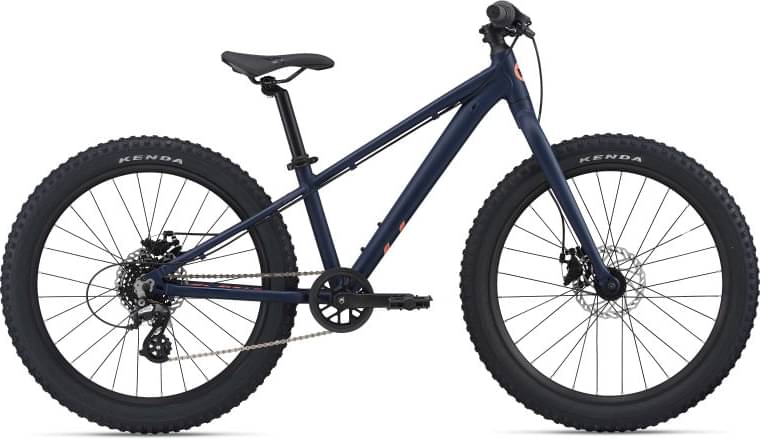

STP 24 Liv is part of the Liv Stp model. Liv released 12 bikes variations of this model so far. Take a sneak peek at all Liv Stp bikes models from 2022, by clicking here.
Model range prices
Liv STP 20 FS Liv 2022 is the most economical model, with a starting price of 445$. Liv STP 26 Liv 2022 on the other hand costs 955$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Youth bikes average price
If you want an acceptable Youth bike you should know that the average price is 278$. However, you could also get a good Youth bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Liv released this model in 2022, its price was 580$. Doing a quick comparison, we notice that STP 24 Liv price is 108.63% more expensive than the average cost of a Youth bike.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Liv STP 24 Liv 2022, has a 24″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
For your safety, it is important to have quality breaks on your bike. Liv STP 24 Liv has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
