Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset Alivio, Altus -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 189cm
XXL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 Butted CrMo, 29” Wheels, Integrated Headset, Disc Brake, Fender and Rack Mounts
Suspension Fork
CrMo, Fender and Rack Eyelets, Disc Brake
Drivetrain
Rear Derailleur
Shimano Alivio Shadow 9-Speed
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus 3x9-Speed
Cassette
Shimano HG300 9-Speed, 12-36T
Crank
SR Suntour XCR6, 48/36/26T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum, Double Wall, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Speedster, 700x40, Puncture Protection, Reflective Sidewall, Wire Bead
Brakes
Brakes
Shimano BR-M201 Hydraulic Disc, 160mm Rotor
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Alloy Flat Top Riser
Grips
Marin Custom
Headset
FSA No.8D, Sealed Cartridge Bearings
Seat
Saddle
Marin Fitness
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.37 mm | 1.35 mm | 1.37 mm | 1.42 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 617 mm | 634 mm | 650 | 654 mm | 658 mm |
| Rake | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 67 mm | 65 mm | 67 mm | 66 mm |
| Stack | 565 mm | 572 mm | 581 mm | 591 mm | 610 mm |
| Reach | 385 mm | 418 mm | 430 mm | 432 mm | 429 mm |
| Top Tube Length | 548 mm | 588 mm | 603 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 521 mm | 559 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 123 mm | 123 mm | 133 mm | 143 mm | 163 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1050 mm | 1068 mm | 1084 mm | 1088 mm | 1092 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 661 mm | 703 mm | 746 mm | 777 mm | 809 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm | 187 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 189 cm | 193 cm |
Model Overview

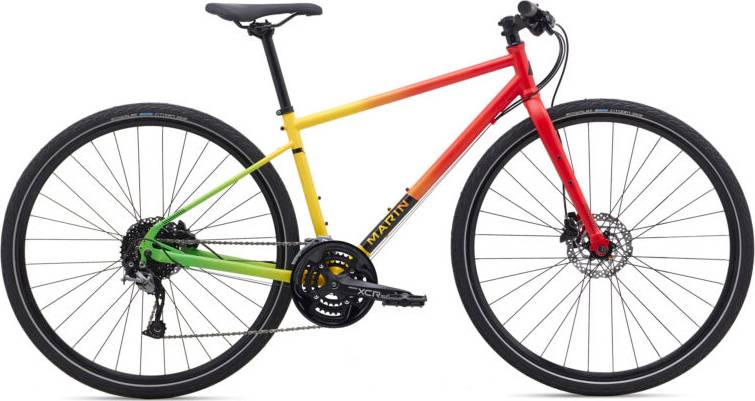

Muirwoods 29er completes the Marin Muirwoods model. Marin released 13 bikes variations of this model so far. You can easily view all of the Marin Muirwoods bikes models from 2020, here.
Model range prices
Marin Muirwoods 2020 is the cheapest bike model and costs 749$. Marin Muirwoods RC 2020 is the most expensive one and costs 999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter bikes average price
Our math shows that the average cost of a dependable Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 799$. Doing a quick comparison, we notice that Muirwoods 29er price is 4.86% more expensive than the average cost of a Commuter bike.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The wheels on Muirwoods 29er are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Muirwoods 29er comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Marin Muirwoods 29er bike has 5 sizes, in the range of 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
