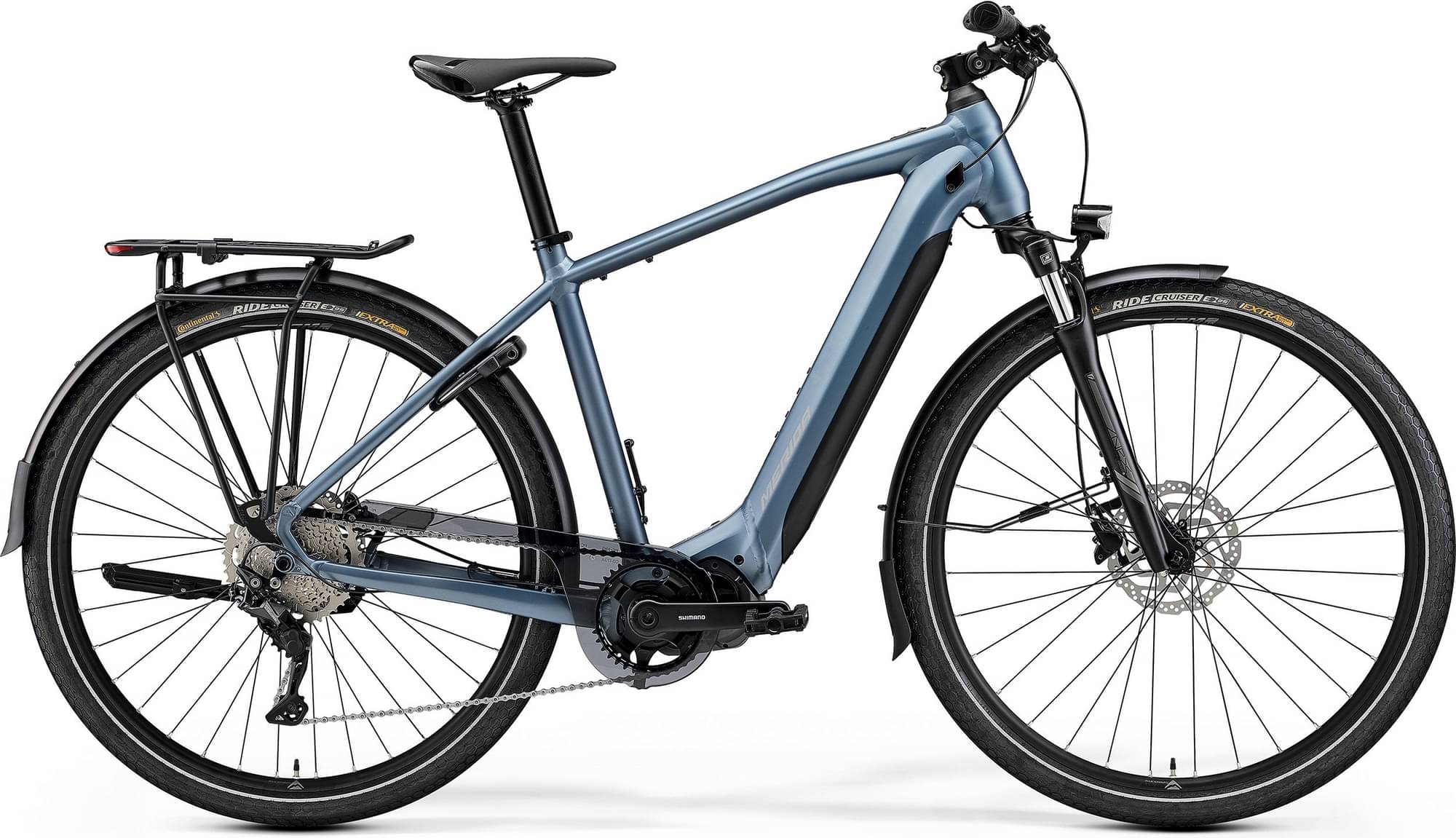

Merida eSPRESSO 500 EQ 2023
2023 E-bike
Estimate price |
4,550$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE III, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, MUK 37 Hanger
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE61, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e10S EPT
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Continental Ride Cruiser, 622-50, wire, reflecting line, Rear: Continental Ride Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm-XS/S/M, 110 mm-L/XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 8156
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.59 mm | 1.61 mm |
| Front Center | 676 mm | 687 mm | 696 mm |
| Rake | 44 mm | 44 mm | 43 mm |
| Trail | 84 mm | 84 mm | 81 mm |
| Stack | 651 mm | 665 mm | 686 mm |
| Reach | 412 mm | 418 mm | 426 mm |
| Top Tube Length | 592 mm | 602 mm | 622 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1146 mm | 1157 mm | 1166 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 770 mm | 804 mm | 838 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
eSPRESSO 500 EQ belongs to the Merida E Espresso model. Merida launched 185 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the cheapest e-bike model and costs 2101$. Merida eSPRESSO CC 675 EQ 2023 is the most expensive one and costs 4866$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4136$. Doing a quick comparison, we notice that eSPRESSO 500 EQ price is 66.77% more expensive than the average cost of a Hybrid e-bike.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The eSPRESSO 500 EQ 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eSPRESSO 500 EQ has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Merida eSPRESSO 500 EQ e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
