Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE61, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e10S EPT
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Ride Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 8156
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Simplo Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.6 mm | 1.62 mm | 1.64 mm |
| Front Center | 677 mm | 676 mm | 687 mm | 696 mm | 719 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 87 mm | 84 mm | 84 mm | 81 mm | 80 mm |
| Stack | 636 mm | 645 mm | 659 mm | 680 mm | 708 mm |
| Reach | 405 mm | 406 mm | 412 mm | 420 mm | 432 mm |
| Top Tube Length | 576 mm | 586 mm | 596 mm | 616 mm | 636 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 133 mm | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1141 mm | 1140 mm | 1151 mm | 1160 mm | 1183 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 729 mm | 764 mm | 798 mm | 832 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

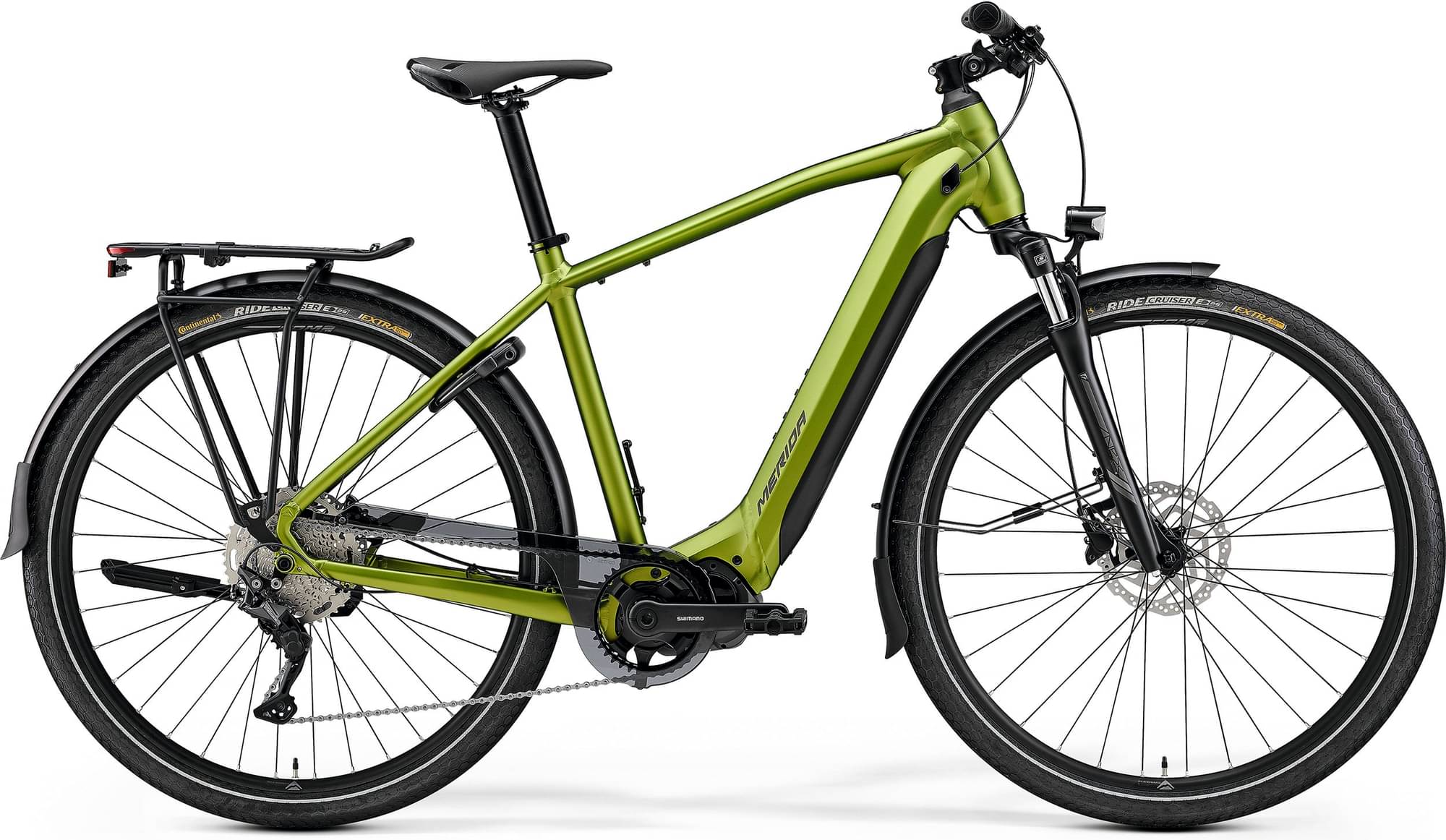

eSPRESSO 575 EQ belongs to the Merida E Espresso model. Merida launched 185 e-bikes of this model so far. You can easily view all of the Merida E Espresso e-bikes models from 2023, here.
Model range prices
The most economical model, the Merida eSPRESSO URBAN 100 EQ 2023 has a starting price of 2101$. Merida eSPRESSO CC 675 EQ 2023 on the other hand is the most expensive at 4866$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The eSPRESSO 575 EQ 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO 575 EQ comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
