Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal
Suspension Fork
SR Suntour Mobie 34 2CR, Air, 80mm suspension travel, 27,5x2,4" max wheelsize
Drivetrain
Rear Derailleur
Shimano XT M8130, SGS
Shift Levers
Shimano XT M8130
Cassette
Shimano LG600, 11-50 teeth, 11 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-889
Wheels
Front Hub
Shimano XT M8110 / Shimano UR600, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36SPH, Centerlock
Rear Hub
Shimano XT M8110 / Shimano UR600, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36SPH, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano XT, 4 piston, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 680mm width, 15mm rise
Headset
Acros Trekking
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA TEAM TK, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L/XL 120mm travel seatpost, XS/S 40mm seatpost suspension travel - M/L/XL 50mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.66 mm | 1.6 mm | 1.56 mm | 1.52 mm |
| Front Center | 651 mm | 667 mm | 687 mm | 708 mm | 727 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 44 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 73 mm |
| Stack | 653 mm | 658 mm | 663 mm | 672 mm | 682 mm |
| Reach | 382 mm | 396 mm | 414 mm | 432 mm | 449 mm |
| Top Tube Length | 577 mm | 592 mm | 612 mm | 632 mm | 652 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1126 mm | 1146 mm | 1167 mm | 1187 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 400 mm | 400 mm | 399 mm | 399 mm | 398 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

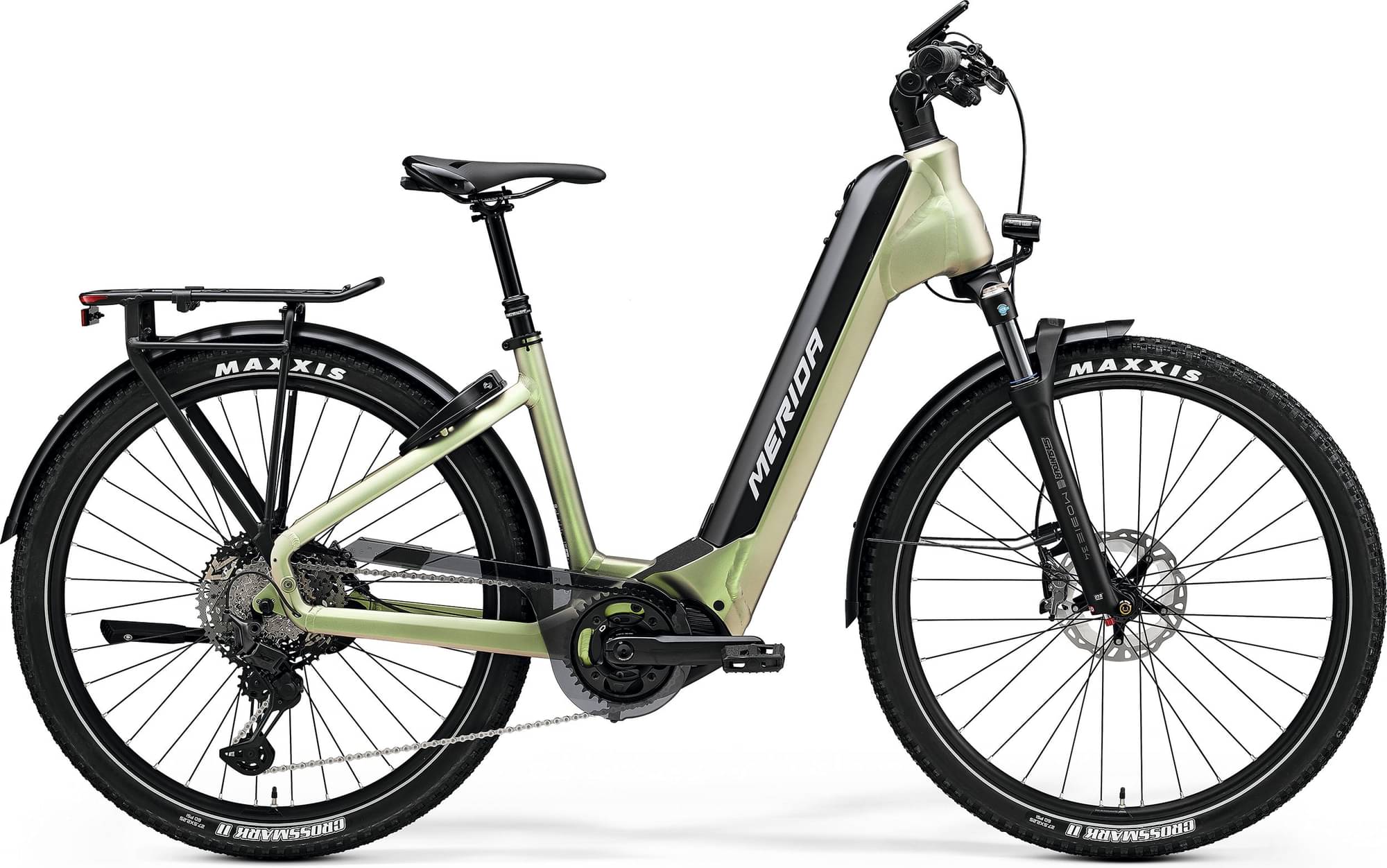

eSPRESSO CC 975 EQ is a Merida E Espresso model. There are 185 e-bikes that carry this model name. You can easily view all of the Merida E Espresso e-bikes models from 2023, here.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the cheapest e-bike model and costs 2101$. Merida eSPRESSO CC 675 EQ 2023 is the most expensive one and costs 4866$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the eSPRESSO CC 975 EQ e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eSPRESSO CC 975 EQ has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
