Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8010 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE, material: aluminium, 700x 42C (with fender) wheelsize, 142x12mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour NEX-PM-DS, Coil, 63mm suspension travel, 700x48C max wheelsize
Drivetrain
Rear Derailleur
Shimano Altus M2000, SGS
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano HG400, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth, Shimano FC-E5010
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Plus, 622-47, wire, reflecting line
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.68 mm | 1.7 mm | 1.7 mm | 1.72 mm |
| Front Center | 659 mm | 662 mm | 672 mm | 682 mm | 690 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm | 46 mm |
| Trail | 81 mm | 78 mm | 78 mm | 74 mm | 75 mm |
| Stack | 649 mm | 660 mm | 674 mm | 691 mm | 705 mm |
| Reach | 387 mm | 392 mm | 396 mm | 406 mm | 410 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 618 mm | 633 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 415 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 185 mm | 200 mm | 215 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1138 mm | 1141 mm | 1151 mm | 1161 mm | 1169 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 376 mm | 377 mm | 377 mm | 378 mm | 378 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

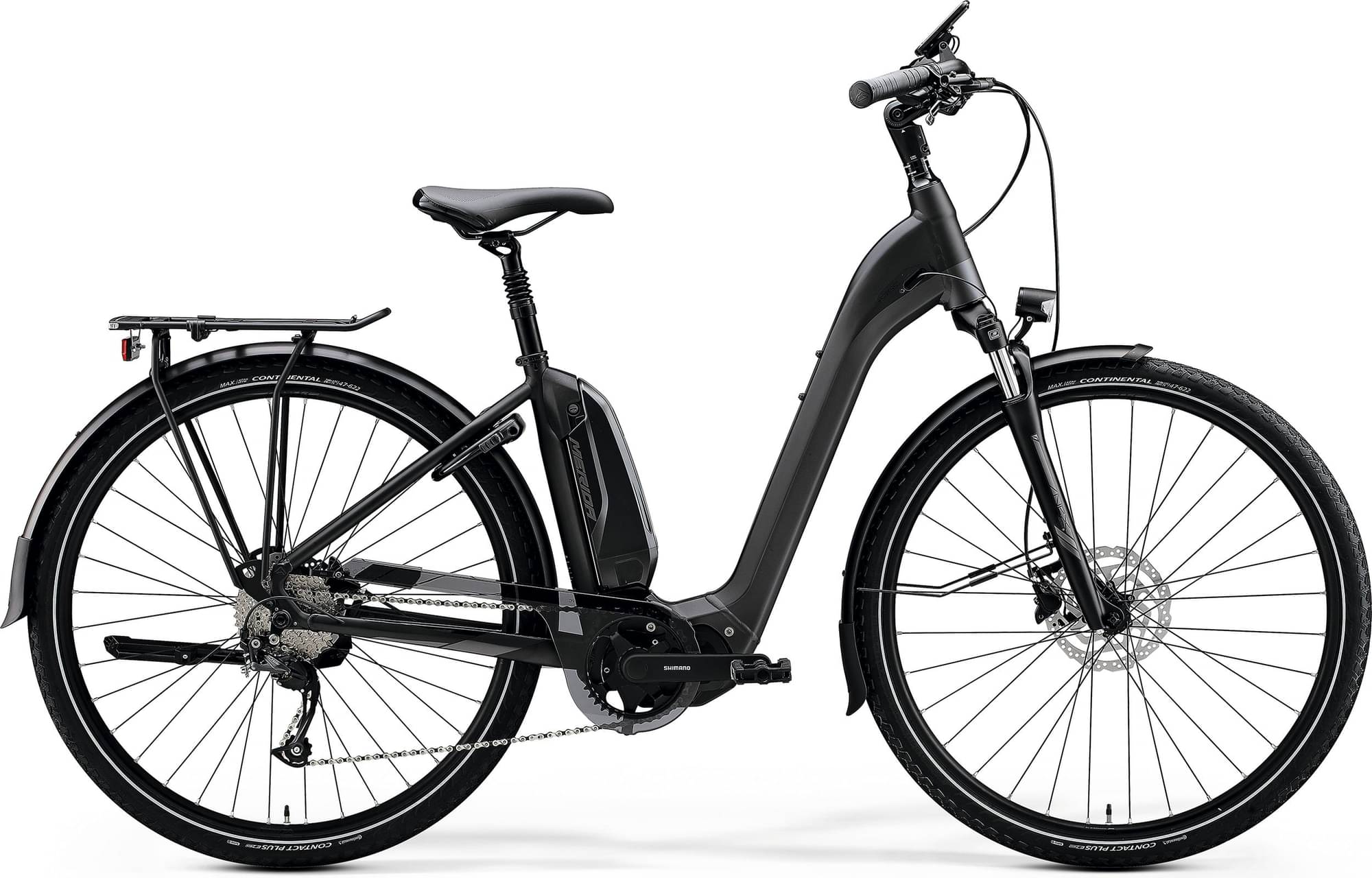

eSPRESSO CITY 300 SE EQ is a Merida E Espresso model. 185 e-bikes variations carry this model name so far. You can easily view all of the Merida E Espresso e-bikes models from 2023, here.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the most affordable e-bike of this model and has a price of 2101$. On the other hand, Merida eSPRESSO CC 675 EQ 2023, is the most expensive and costs 4866$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
eSPRESSO CITY 300 SE EQ components
Fork
Merida eSPRESSO CITY 300 SE EQ 2023 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the eSPRESSO CITY 300 SE EQ e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eSPRESSO CITY 300 SE EQ has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Merida eSPRESSO CITY 300 SE EQ e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
