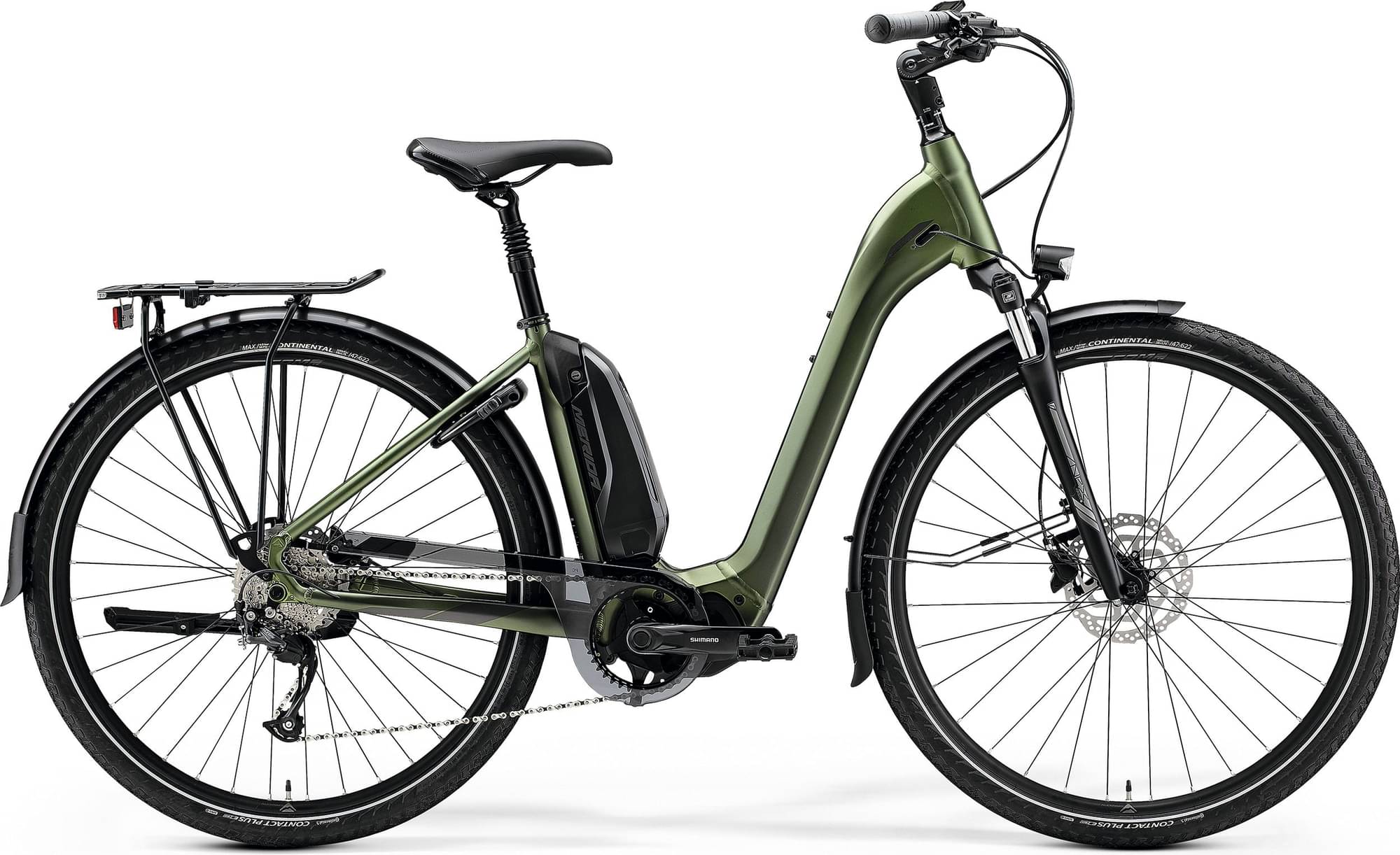

Merida eSPRESSO CITY 300 SE EQ 418Wh 2023
2023 E-bike
Estimate price |
3,078$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8014, 418Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE, material: aluminium, 700x 42C (with fender) wheelsize, 142x12mm axle standard, MUK 37 Hanger
Suspension Fork
SR Suntour NEX-PM-DS, Coil, 63mm suspension travel, 700x48C max wheelsize
Drivetrain
Rear Derailleur
Shimano Altus M2000, SGS
Shift Levers
Shimano Altus
Cassette
Shimano HG400, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Continental Contact Plus, 622-47, wire, reflecting line, Rear: Continental Contact Plus, 622-47, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA EXPERT TK, material: aluminium, 31.8mm diameter, adjustable, 90 mm-XS/S/M, 110 mm-L/XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA 2346
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8014, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.68 mm | 1.7 mm | 1.7 mm |
| Front Center | 659 mm | 662 mm | 672 mm | 682 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 81 mm | 78 mm | 78 mm | 74 mm |
| Stack | 649 mm | 660 mm | 674 mm | 691 mm |
| Reach | 387 mm | 392 mm | 396 mm | 406 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 618 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 415 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 185 mm | 200 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1138 mm | 1141 mm | 1151 mm | 1161 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 376 mm | 377 mm | 377 mm | 378 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
eSPRESSO CITY 300 SE EQ 418Wh completes the Merida E Espresso model. There are 185 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the most affordable e-bike of this model and has a price of 2101$. On the other hand, Merida eSPRESSO CC 675 EQ 2023, is the most expensive and costs 4866$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2798$. Comparing this to the average Hybrid e-bike price, we see that the price is 12.82% higher.
Overview of components
Fork
Merida eSPRESSO CITY 300 SE EQ 418Wh 2023 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The eSPRESSO CITY 300 SE EQ 418Wh 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Merida eSPRESSO CITY 300 SE EQ 418Wh e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
