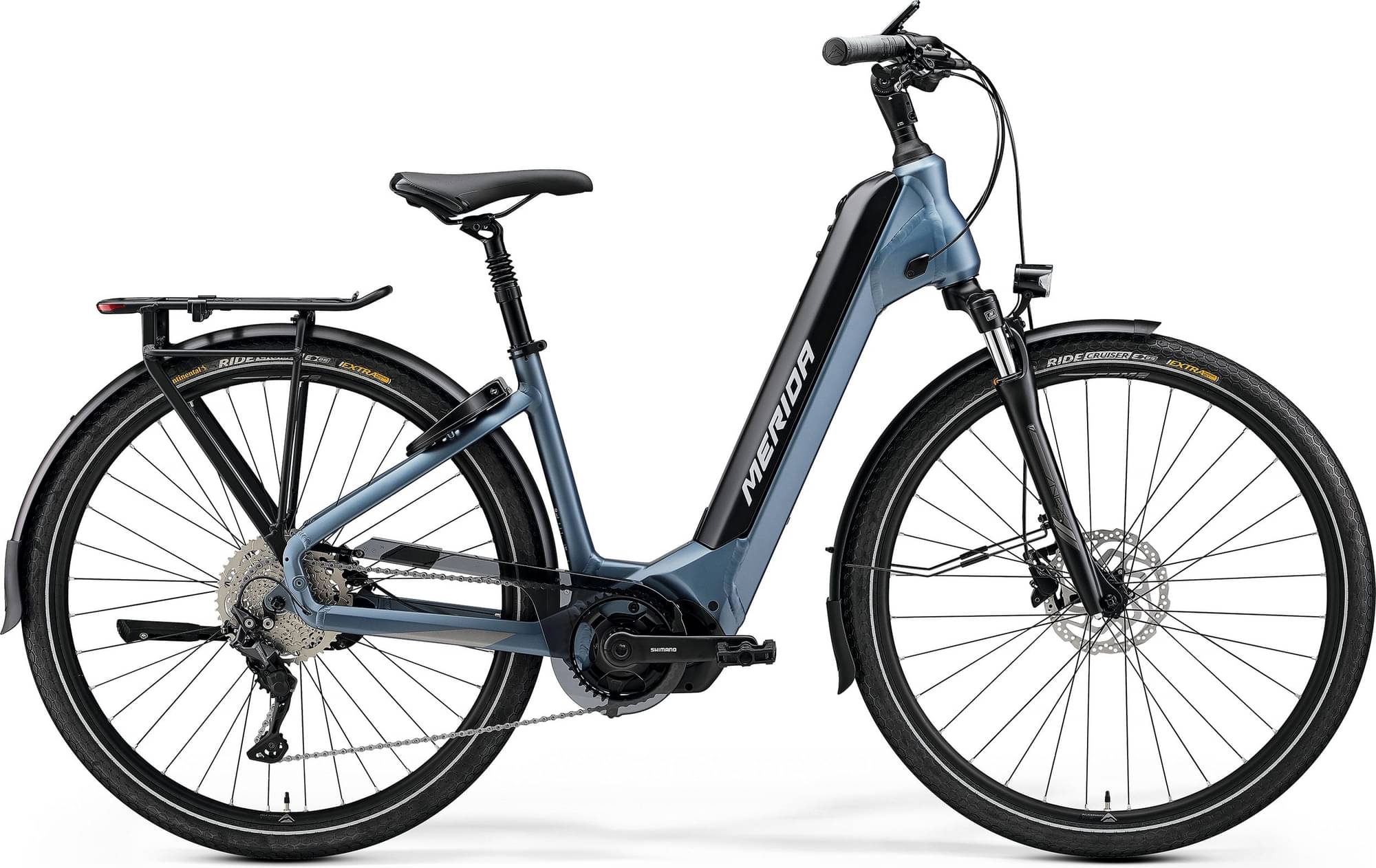

Merida eSPRESSO CITY 500 EQ 2023
2023 E-bike
Estimate price |
4,751$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE II, material: aluminium, 700x50C (with fender) max. wheelsize, 135x9mm axle standard, MUK 5 Hanger
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE61, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e10S EPT
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Continental Ride Cruiser, 622-50, wire, reflecting line, Rear: Continental Ride Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA EXPERT TK, material: aluminium, 31.8mm diameter, adjustable, 65 mm-XS/S/M, 90 mm-L/XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.66 mm |
| Front Center | 651 mm | 666 mm |
| Rake | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm |
| Stack | 653 mm | 658 mm |
| Reach | 383 mm | 396 mm |
| Top Tube Length | 577 mm | 592 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm |
| Chainstay Length | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1125 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 410 mm | 410 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm |
| Rider Max Height | 166 cm | 174 cm |
Model Overview
eSPRESSO CITY 500 EQ belongs to the Merida E Espresso model. 185 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the most affordable e-bike of this model and has a price of 2101$. On the other hand, Merida eSPRESSO CC 675 EQ 2023, is the most expensive and costs 4866$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4318$. Comparing this to the average Hybrid e-bike price, we see that the price is 74.11% higher.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida eSPRESSO CITY 500 EQ 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO CITY 500 EQ comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 156 cm – 174 cm (5.12 ft – 5.71 ft). In conclusion, finding one for you shouldn’t be a problem.
