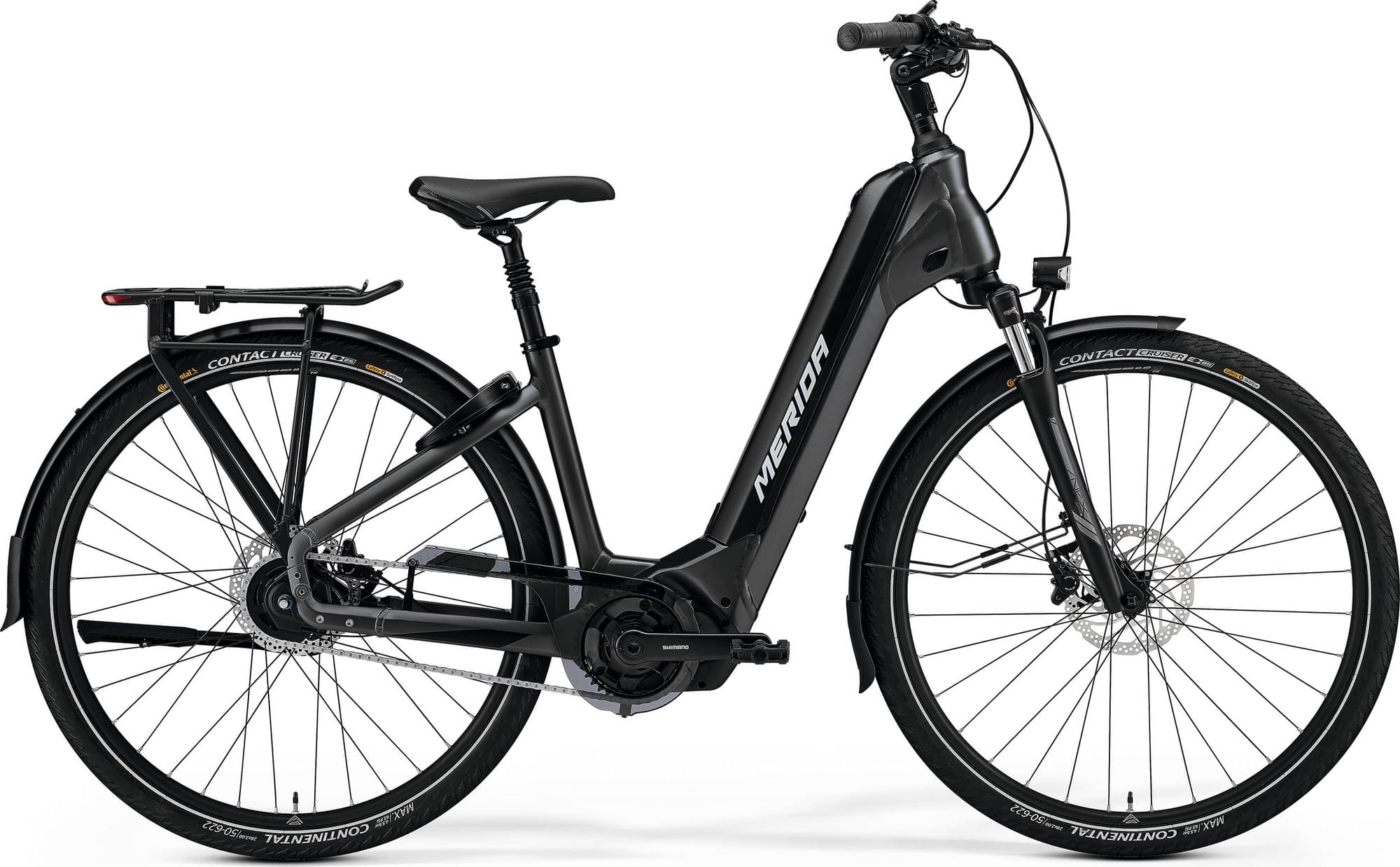

Merida eSPRESSO CITY 700 EQ (EP6) 2023
2023 E-bike
Estimate price |
5,152$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Trendpower Internal Battery, 750Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE II HG, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, internal, hub-gear dropout
Suspension Fork
Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Shift Levers
Shimano SW-EN600-R
Cassette
Shimano CS-C7000, 27 teeth
Crank
Shimano CR-ET600, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC Z1eHX EPT
Pedals
VP VPE-891
Wheels
Front Hub
Shimano M4050 / Shimano Nexus Inter-5E, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano M4050 / Shimano Nexus Inter-5E, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Tires
Front: Continental Contact Cruiser, 622-50, wire, reflecting line, Rear: Continental Contact Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT410-3A, 2 piston
Cockpit
Stem
MERIDA EXPERT, material: aluminium, 31.8mm diameter, adjustable, 65 mm-XS/S/M, 90 mm-L/XL
Handlebar
MERIDA EXPERT, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA-8252
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.66 mm | 1.6 mm | 1.56 mm |
| Front Center | 651 mm | 666 mm | 687 mm | 707 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 73 mm | 80 mm | 80 mm | 80 mm |
| Stack | 653 mm | 658 mm | 662 mm | 672 mm |
| Reach | 383 mm | 396 mm | 415 mm | 432 mm |
| Top Tube Length | 577 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1125 mm | 1146 mm | 1166 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 410 mm | 410 mm | 409 mm | 409 mm |
| Wheels | 650 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
eSPRESSO CITY 700 EQ (EP6) belongs to the Merida E Espresso model. There are 204 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the most affordable e-bike of this model and has a price of 2118$. On the other hand, Merida eSPRESSO CC 675 EQ (EP6) 2023, is the most expensive and costs 4871$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 4689$. In conclusion, this e-bike price is 89.07% more expensive than the price of the average Hybrid e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
eSPRESSO CITY 700 EQ (EP6) components
Fork
Merida eSPRESSO CITY 700 EQ (EP6) 2023 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the eSPRESSO CITY 700 EQ (EP6) e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
