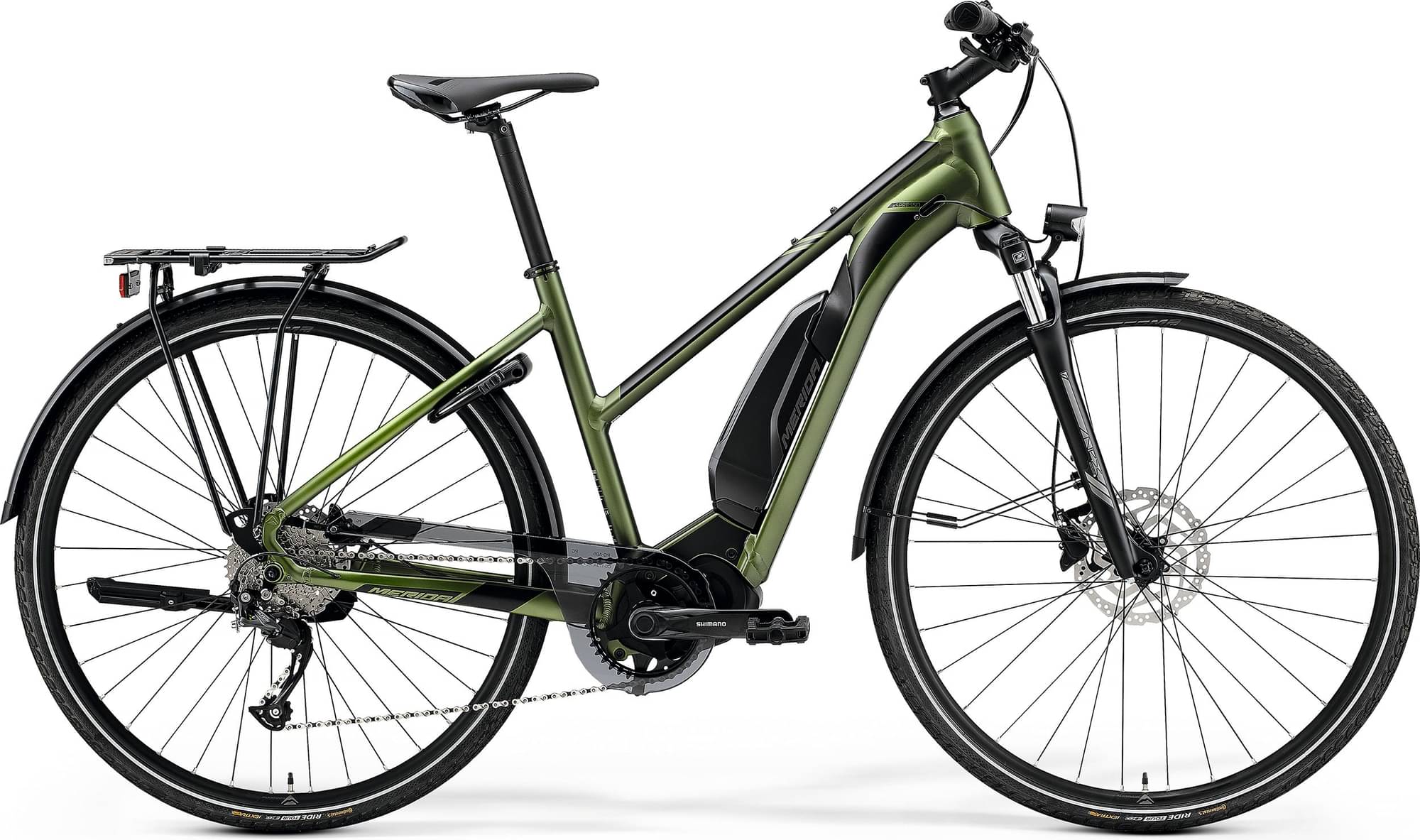

Merida eSPRESSO L 300 SE EQ 418Wh 2023
2023 E-bike
Estimate price |
3,078$
Weight | 22.04 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8014, 418Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE, material: aluminium, 700C wheelsize, 142x12mm axle standard, MUK 37 Hanger
Suspension Fork
Suntour NEX-PM-DS, Coil, 63mm suspension travel, 700x48C max wheelsize
Drivetrain
Rear Derailleur
Shimano Altus M2000, SGS
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano HG400, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth, Shimano FC-E5010
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Continental Ride Tour, 622x42", reflective stripe, Rear: Continental Ride Tour, 622x42", reflective stripe
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, 17° stem angle, 80 mm-XS/S, 90 mm-M, 100 mm-L, 110 mm-XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8014, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.65 mm |
| Front Center | 635 mm | 639 mm | 650 |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 72 mm | 72 mm |
| Stack | 623 mm | 634 mm | 649 mm |
| Reach | 381 mm | 387 mm | 393 mm |
| Top Tube Length | 561 mm | 576 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1097 mm | 1101 mm | 1112 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 623 mm | 623 mm | 627 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
eSPRESSO L 300 SE EQ 418Wh is a Merida E Espresso model. Merida launched 185 e-bikes of this model so far. You can easily view all of the Merida E Espresso e-bikes models from 2023, here.
Model range prices
The most economical model, the Merida eSPRESSO URBAN 100 EQ 2023 has a starting price of 2101$. Merida eSPRESSO CC 675 EQ 2023 on the other hand is the most expensive at 4866$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Merida released this model in 2023, its price was 2798$. Comparing the average cost of a Hybrid e-bike to this one, you will see that eSPRESSO L 300 SE EQ 418Wh price is 12.82% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
eSPRESSO L 300 SE EQ 418Wh weighs 22.04 kg (48.59 lbs) and is a bit lighter than the average. In short, the average Hybrid e-bike weight is 7.94% higher than this one.
Overview of components
Fork
The eSPRESSO L 300 SE EQ 418Wh comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The eSPRESSO L 300 SE EQ 418Wh 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO L 300 SE EQ 418Wh comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
