Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE61, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e10S EPT
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Ride Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 8156
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Simplo Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.6 mm | 1.62 mm |
| Front Center | 677 mm | 676 mm | 687 mm | 696 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm |
| Trail | 87 mm | 84 mm | 84 mm | 81 mm |
| Stack | 636 mm | 645 mm | 659 mm | 680 mm |
| Reach | 405 mm | 406 mm | 412 mm | 420 mm |
| Top Tube Length | 576 mm | 586 mm | 596 mm | 616 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 133 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1141 mm | 1140 mm | 1151 mm | 1160 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 589 mm | 606 mm | 627 mm | 646 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

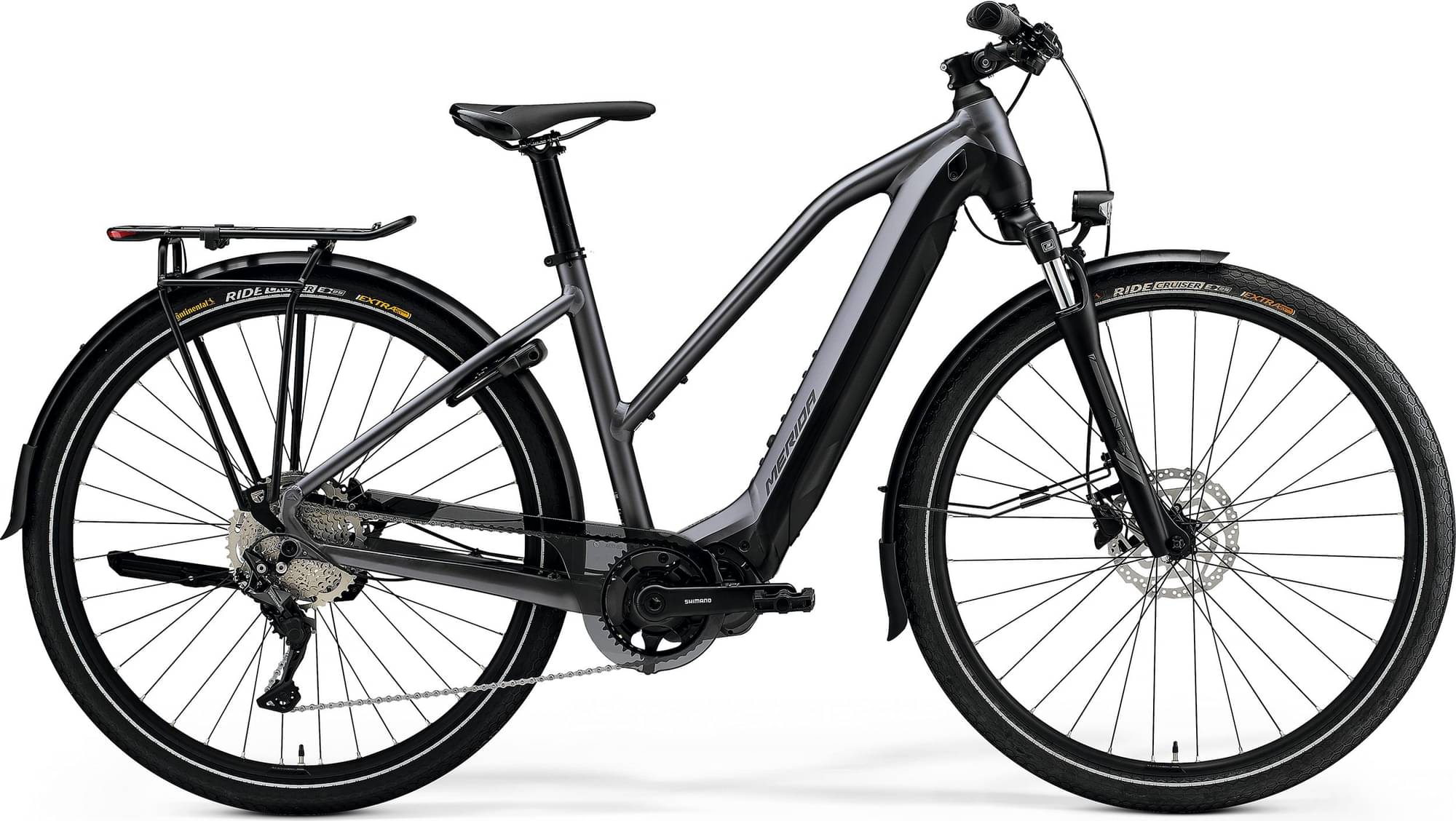

eSPRESSO L 575 EQ belongs to the Merida E Espresso model. Merida launched 185 e-bikes of this model so far. You can easily view all of the Merida E Espresso e-bikes models from 2023, here.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the most affordable e-bike of this model and has a price of 2101$. On the other hand, Merida eSPRESSO CC 675 EQ 2023, is the most expensive and costs 4866$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The eSPRESSO L 575 EQ comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on eSPRESSO L 575 EQ are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
eSPRESSO L 575 EQ comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
