Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork X Fusion
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
146cm - 157cm
SM
154cm - 166cm
MD
163cm - 174cm
MD
172cm - 181cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Trail, 120mm Travel, 27.5" and 29" Options
Suspension Fork
X-Fusion RC32 Air, 130mm Travel, 46mm Offset (27.5), 51mm Offset (29)
Rear Shock
X-Fusion 02 Pro R, 190x42.5mm (27.5), 190x45mm (29)
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle, 11-50T
Crank
SRAM SX Eagle, 30T, 170mm (XXS - S), 175mm (M - XL)
Bottom Bracket
Truvativ Powerspline BB, BSA Threaded
Chain
SRAM SX Eagle
Pedals
VP Nylon Flat
Wheels
Front Hub
Alloy 15x110mm Boost, 6 Bolt
Rear Hub
Alloy 12x148mm, HG, 6 Bolt
Rims
Stan's Flow D 32H
Tires
Goodyear Newton 2.4" Folding
Brakes
Brakes
Tektro HD-M275 Hydraulic
Brake Levers
Tektro HD-M275
Disk Rotors
Tektro 180mm
Cockpit
Stem
6061 Alloy, 50mm Length, 35mm Clamp
Handlebar
TranzX 6061 Butted Alloy, 780mm, 20mm Rise
Grips
VP Lock-On
Headset
Sealed Bearing, Tapered
Seat
Saddle
Norco XC
Seatpost
TranzX YSP18 Dropper, 31.6mm, 130mm (S, M), 150mm (L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.4 mm | 1.33 mm | 1.37 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 671 mm | 705 mm | 739 mm | 742 mm | 777 mm | 810 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 114 mm | 114 mm | 114 mm | 109 mm | 109 mm | 109 mm |
| Stack | 572 mm | 581 mm | 591 mm | 607 mm | 616 mm | 625 mm |
| Reach | 384 mm | 414 mm | 444 mm | 444 mm | 474 mm | 504 mm |
| Top Tube Length | 526 mm | 558 mm | 590 mm | 594 mm | 627 mm | 659 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 390 mm | 420 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1105 mm | 1139 mm | 1173 mm | 1173 mm | 1208 mm | 1241 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 644 mm | 658 mm | 668 mm | 686 mm | 698 mm | 708 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 146 cm | 154 cm | 163 cm | 172 cm | 172 cm | 181 cm |
| Rider Max Height | 157 cm | 166 cm | 174 cm | 181 cm | 184 cm | 191 cm |
About this model

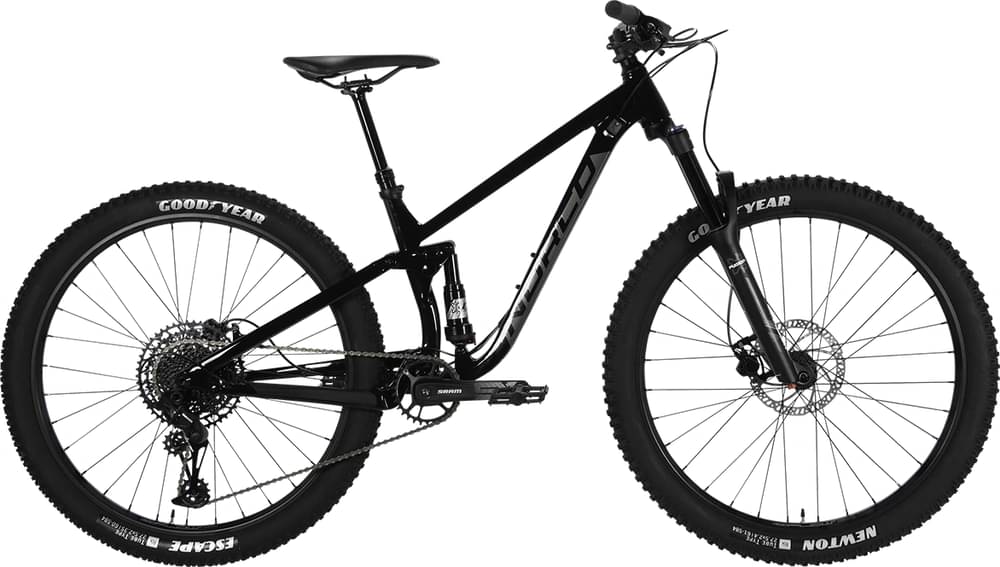

Fluid FS 3 27.5 completes the Norco Fluid Fs model. There are 111 bikes that carry this model name. You can easily view all of the Norco Fluid Fs bikes models from 2021, here.
Model range prices
Norco Fluid FS 3 29 2021 is the most economical model, with a starting price of 2249$. Norco Fluid FS 1 27.5 2021 on the other hand costs 3399$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Norco Fluid FS 3 27.5 price was 2249$. Doing a quick comparison, we notice that Fluid FS 3 27.5 price is 22.81% smaller than the average cost of a Trail bike.
Overview of components
Fork
This bike has the X Fusion fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the X-Fusion 02 Pro R model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Fluid FS 3 27.5 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Fluid FS 3 27.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 146 cm – 191 cm (4.79 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
