Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset X01 -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco XC High-Mod 27.5
Suspension Fork
RockShox Recon Gold TK SoloAir 15mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 Alloy
Front Derailleur
N/A
Shift Levers
N/A
Cassette
SRAM X01 10/42
Crank
SRAM X01 34T
Bottom Bracket
SRAM X01 PF30
Chain
SRAM XX1
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Kore Durox 15mm
Rear Hub
Kore Durox 142x12
Rims
Stans ZTR Rapid 27.5
Tires
Schwalbe Racing Ralph 2.1 x 27.5
Brakes
Brakes
Avid Elixir 7 Trail 160mm/ Connectamajig
Brake Levers
Avid Elixir 7 Trail
Disk Rotors
N/A
Cockpit
Stem
Norco SL Alloy Stem
Handlebar
Norco Lite 700mm Flat Bar
Grips
Norco SL Silicon
Headset
FSA No.42ACB w/8mm Alloy spacer
Seat
Saddle
Prologo Zero
Seatpost
Norco SL Alloy Post 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.48 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 620.8 mm | 644 mm | 665.8 mm | 687.8 mm | 709.6 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 86 mm | 85 mm | 83 mm | 81 mm |
| Stack | 584.9 mm | 600 mm | 615.2 mm | 630.4 mm | 645.6 mm |
| Reach | 375.9 mm | 395.7 mm | 415.4 mm | 434.9 mm | 454.2 mm |
| Top Tube Length | 543 mm | 570 mm | 597 mm | 624 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 368 mm | 405 mm | 445 mm | 485 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.75 ° | 70 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 424 mm | 426 mm | 429 mm | 431 mm | 434 mm |
| Wheelbase | 1040 mm | 1065 mm | 1090 mm | 1115 mm | 1139 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 727 mm | 747 mm | 792 mm | 819 mm | 847 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

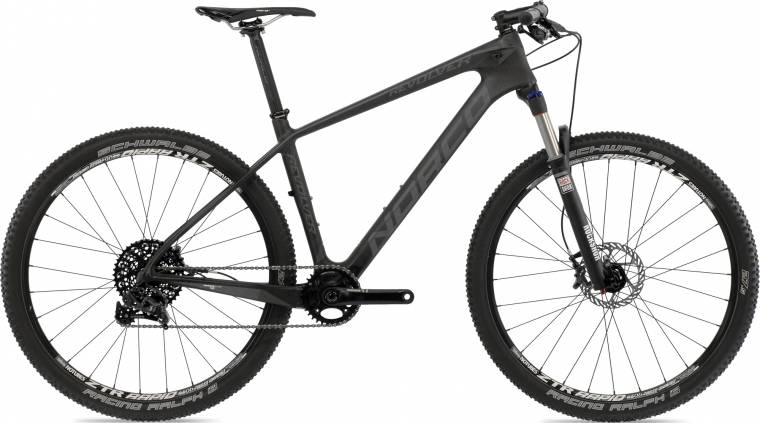

Revolver 7.1 HT is a Norco Revolver model. There are 148 bikes that carry this model name. You can easily view all of the Norco Revolver bikes models from 2014, here.
Model range prices
Norco Revolver 7.2 HT 2014 is the most economical model, with a starting price of 1955$. Norco Revolver 7 LE HT 2014 on the other hand costs 5535$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2014 for 3540$. If we compare this with the average Crosscountry bike cost we notice that the price is 85.83% higher.
Overview of components
Fork
This bike has the RockShox Recon Gold RL fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Revolver 7.1 HT model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Norco Revolver 7.1 HT bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
