Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset X7, X5 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco XC MId-Modulus Carbon
Suspension Fork
RockShox Recon Gold TK SoloAir 15mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X7 10spd
Front Derailleur
SRAM X5 2spd
Shift Levers
N/A
Cassette
SRAM PG1030 11/36
Crank
SRAM X5 38/24
Bottom Bracket
PF30
Chain
SRAM PG1031 10spd
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Formula Alloy 15mm 32H
Rear Hub
Norco Alloy 142x12
Rims
Alex MD19 29""
Tires
Schwalbe Rapid Rob 2.10 x 29
Brakes
Brakes
Avid Elixir 5 160mm
Brake Levers
Avid Elixir 5
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy
Handlebar
Norco Lite 700mm Flat Bar
Grips
Norco SL Silicon
Headset
FSA No.42 Tapered
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.47 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 638.1 mm | 659.4 mm | 681.4 mm | 704.1 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 84 mm | 82 mm | 80 mm |
| Stack | 616.1 mm | 617.2 mm | 632.4 mm | 647.7 mm |
| Reach | 394.9 mm | 418.7 mm | 438.2 mm | 458.5 mm |
| Top Tube Length | 573 mm | 600 mm | 627 mm | 655 mm |
| Seat Tube Angle | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 405 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 440 mm | 442 mm | 445 mm | 447 mm |
| Wheelbase | 1069 mm | 1093 mm | 1118 mm | 1143 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 750 mm | 790 mm | 817 mm | 846 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

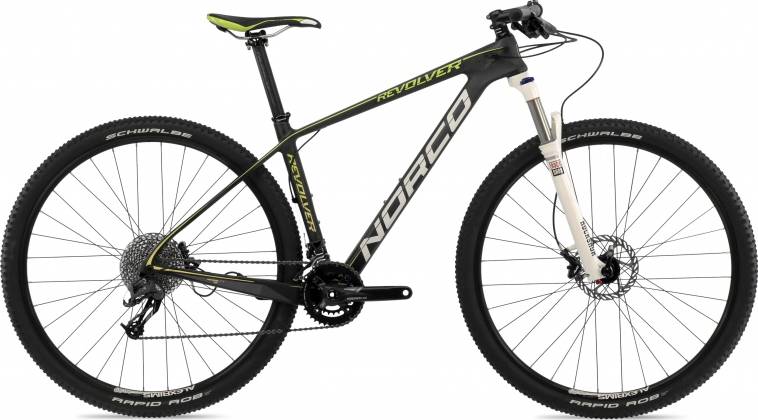

Revolver 9.2 HT is a Norco Revolver model. Norco released 148 bikes variations of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Model range prices
The most economical model, the Norco Revolver 7.2 HT 2014 has a starting price of 1955$. Norco Revolver 7 LE HT 2014 on the other hand is the most expensive at 5535$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2014 and its price was 2275$. Comparing the average cost of a Crosscountry bike to this one, you will see that Revolver 9.2 HT price is 19.42% more expensive.
Overview of components
Fork
Norco Revolver 9.2 HT 2014 bike is equipped with the RockShox Recon Gold RL fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Norco Revolver 9.2 HT 2014, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Revolver 9.2 HT has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
