Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Select+
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Mod Carbon, 120mm
Suspension Fork
RockShox SID Select+, 120mm, 44mm Offset
Rear Shock
RockShox SIDLuxe Select+, 190x45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle 12spd
Cassette
SRAM XG1275 Eagle, 10-52T
Crank
SRAM X1 Eagle DUB Carbon, 32T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
SRAM BB DUB PF92
Chain
SRAM GX Eagle
Wheels
Front Hub
DT Swiss XR 1700 Spline, 15x110mm Boost, 6 Bolt
Rear Hub
DT Swiss XR 1700 Spline, 12x148mm Boost, XD, 6 Bolt
Rims
DT Swiss XR 1700 Spline 29" Wheelset
Tires
Front: Maxxis Forekaster 2.35" 3C/TR/EXO, Rear: Maxxis Forekaster 2.35" 3C/TR/EXO
Brakes
Brakes
Front: SRAM G2 RSC, Organic Pads, Rear: SRAM G2 RSC, Organic Pads
Brake Levers
SRAM G2 RSC
Cockpit
Stem
6061 Alloy 60mm Length, 35mm Clamp
Handlebar
Butted 6061 Alloy, 780mm, 20mm Rise
Grips
Ergon GA20 Lock-On
Headset
FSA Internal Cartridge Bearing
Seat
Saddle
Fizik Alpaca Terra, Wingflex
Seatpost
X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.32 mm | 1.25 mm | 1.2 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 699 mm | 729 mm | 763 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 578 mm | 578 mm | 588 mm | 598 mm |
| Reach | 409 mm | 439 mm | 469 mm | 500 mm |
| Top Tube Length | 568 mm | 598 mm | 631 mm | 663 mm |
| Seat Tube Angle | 74.9 ° | 74.9 ° | 74.9 ° | 74.9 ° |
| Seat Tube Length | 425 mm | 440 mm | 485 mm | 510 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 411 mm | 414 mm | 417 mm | 421 mm |
| Wheelbase | 1108 mm | 1141 mm | 1179 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 700 | 707 mm | 708 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model

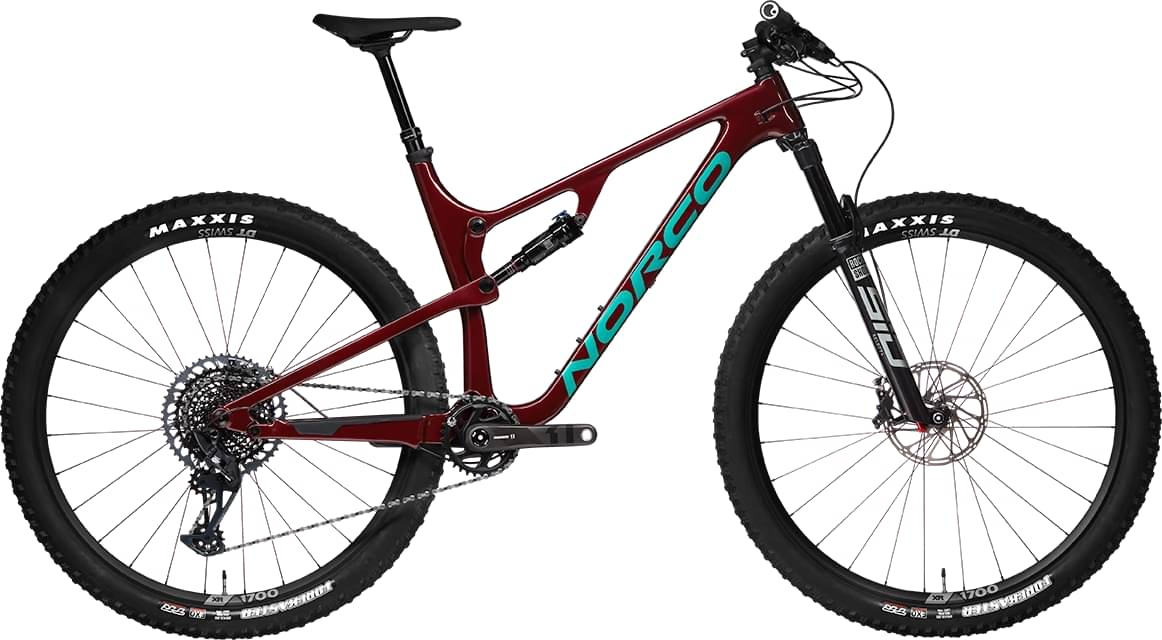

Revolver FS 1 120 belongs to the Norco Revolver model. Norco launched 148 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Norco Revolver HT 3 120 2022 is the most affordable bike of this model and has a price of 2799$. On the other hand, Norco Revolver FS AXS 120 2022, is the most expensive and costs 8699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Norco released this model in 2022, its price was 6299$. Doing a quick comparison, we notice that Revolver FS 1 120 price is 128.06% higher than the average cost of a Trail bike.
Overview of components
Fork
This bike has the RockShox SID Select+ fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox SIDLuxe Select+ rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Revolver FS 1 120 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolver FS 1 120 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
