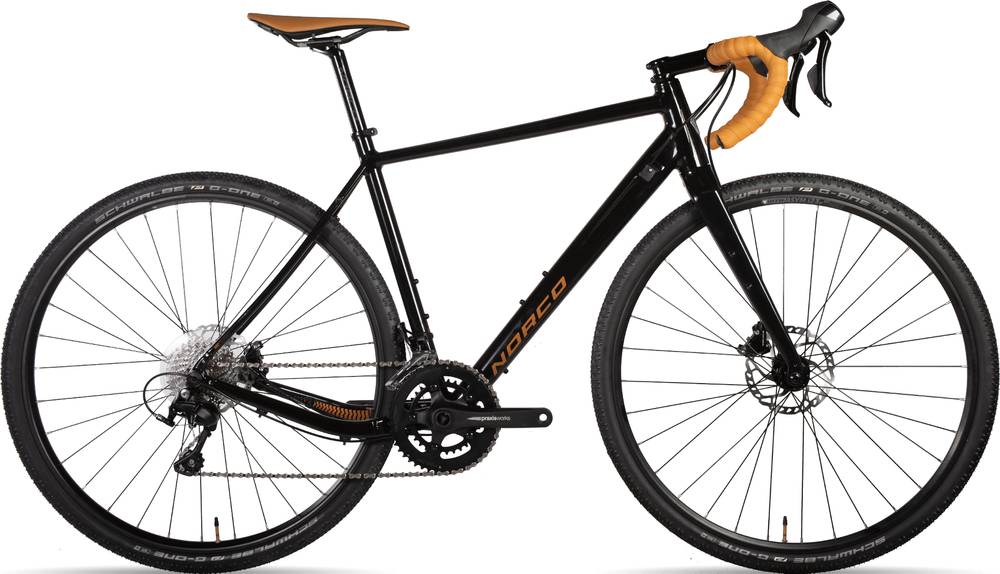

Norco Search XR Aluminum 105 650b 2019
2019 Road
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Search XR, Aluminum, 12x142mm TA Dropouts
Suspension Fork
Norco Search XR Carbon Fork, 12x100mm TA
Drivetrain
Rear Derailleur
Shimano Ultegra RD-RX800-GS, Shadow Plus, 11 Speed
Front Derailleur
Shimano 105 FD-R7000, 2 Speed
Shift Levers
Rear: Shimano 105 ST-R7020, Hydraulic Brake, 11 Speed, Front: Shimano 105 ST-R7020, Hydraulic Brake, 2 Speed
Cassette
Shimano 105 CS-HG700, 11-34T, 11 Speed
Crank
Praxis Alba M24, 170mm (48/50.5) | 172.5mm (53/55.5) | 175mm (58/60.5), 48/32T
Bottom Bracket
Praxis M24 PressFit, BB86
Chain
KMC X11, 11 Speed
Wheels
Front Hub
Alloy 12x100mm Thru-Axle 32h - Black
Rear Hub
Alloy, 32 Hole, 12x142mm
Rims
WTB ASYM i23 TCS, 23mm Internal Width
Tires
Schwalbe G-One Bite, 38c, RaceGuard, Folding
Brakes
Brakes
Shimano 105 BR-R7020, Hydraulic Disc, Shimano SM-RT66 160mm Rotor
Brake Levers
Shimano 105 ST-R7020
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Norco Super Flare 16deg - Black
Headset
FSA Orbit No. 42/ACB - All Black
Seat
Saddle
Norco SL Race w/Chromo Rails - Brown
Seatpost
Norco SL Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm |
|---|---|
| Stack Reach Ratio | 1.45 mm |
| Bottom Bracket Height | 275 mm |
| Front Center | 578 mm |
| Rake | 49 mm |
| Trail | 62 mm |
| Stack | 525 mm |
| Reach | 363 mm |
| Top Tube Length | 516 mm |
| Seat Tube Angle | 73.75 ° |
| Seat Tube Length | 435 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 130 mm |
| Chainstay Length | 411 mm |
| Wheelbase | 982 mm |
| Bottom Bracket Drop | 57 mm |
| Standover Height | 721 mm |
| Wheels | 650 |
Model Overview
Search XR Aluminum 105 650b is a Norco Search model. 121 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Norco Search XR Aluminum Apex 1 650b 2019 is the most affordable bike of this model and has a price of 1599$. On the other hand, Norco Search XR Carbon Force 1 650b 2019, is the most expensive and costs 4599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 1999$. In conclusion, this bike price is 23.16% smaller than the price of the average Gravel bike.
Search XR Aluminum 105 650b components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Search XR Aluminum 105 650b model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Search XR Aluminum 105 650b is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
