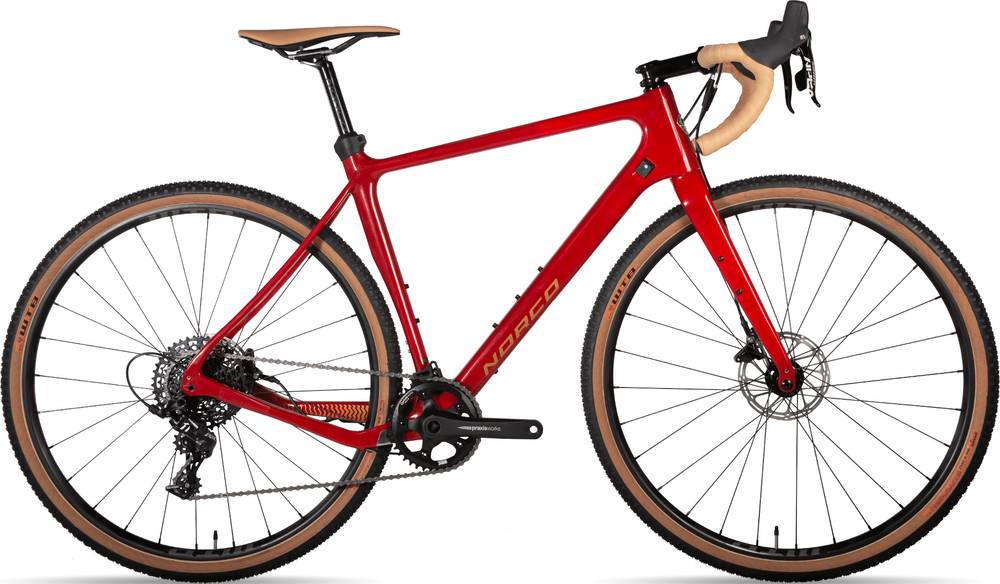

Norco Search XR Carbon Apex 1 650b 2019
2019 Road
Estimate price |
3,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Apex 1, Praxis -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Search XR, Carbon, 12x142mm TA Dropouts
Suspension Fork
Norco Search XR Carbon Fork, 12x100mm TA
Drivetrain
Rear Derailleur
SRAM Apex 1, Long Cage, 11 Speed
Front Derailleur
Norco Integrated 1x Guide
Shift Levers
SRAM Apex 1, Hydraulic Brake, 11 Speed
Cassette
SRAM GX XG-1150, 10-42T, 11 Speed
Crank
Praxis Alba M24, 165mm (45.5) | 170mm (48/50.5) | 172.5mm (53/55.5) | 175mm (58/60.5), 40T
Bottom Bracket
Praxis M24 PressFit, BB86
Chain
SRAM Apex 1 PC-1110, 11 Speed
Wheels
Front Hub
Alloy 12x100mm Thru-Axle 28h - Black
Rear Hub
Alloy, 28 Hole, 12x142mm
Rims
WTB ST Light i23 TCS 2.0, Tubeless Ready, 23mm Internal Width
Tires
WTB Resolute, 42c, Tanwall, Tubless Compatible System, Folding
Brakes
Brakes
SRAM Apex 1, Hydraulic Disc, SRAM CenterLine 160mm Rotor
Brake Levers
SRAM Apex 1
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Norco Super Flare 16deg - Black
Headset
FSA Orbit No. 42/ACB - All Black
Seat
Saddle
Norco SL Race w/Chromo Rails - Brown
Seatpost
Norco SL Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 273 mm | 273 mm |
| Front Center | 566 mm | 578 mm |
| Rake | 50 mm | 49 mm |
| Trail | 62 mm | 62 mm |
| Stack | 497 mm | 517 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 403 mm | 403 mm |
| Wheelbase | 963 mm | 974 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 694 mm | 713 mm |
| Wheels | 650 | 650 |
About this model
Search XR Carbon Apex 1 650b is part of the Norco Search model. 121 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Search XR Aluminum Apex 1 650b 2019 has a starting price of 1599$. Norco Search XR Carbon Force 1 26 2019 on the other hand is the most expensive at 4599$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 3199$. Comparing the average cost of a Gravel bike to this one, you will see that Search XR Carbon Apex 1 650b price is 29.94% more expensive.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Search XR Carbon Apex 1 650b model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Search XR Carbon Apex 1 650b has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
