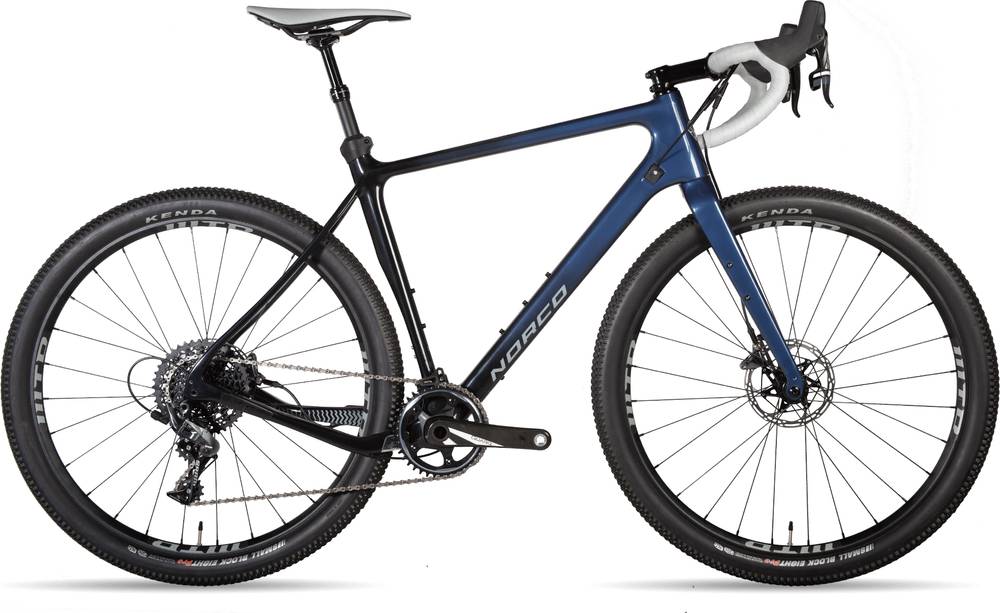

Norco Search XR Carbon Force 1 26 2019
2019 Road
Estimate price |
4,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Groupset Force 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Search XR, Carbon, 12x142mm TA Dropouts
Suspension Fork
Norco Search XR Carbon Fork, 12x100mm TA
Drivetrain
Rear Derailleur
SRAM Force 1, Long Cage, 11 Speed
Front Derailleur
Norco Integrated 1x Guide
Shift Levers
Rear: SRAM Force 1, Hydraulic Brake, 11 Speed, Front: SRAM Force 1 Modified Dropper Remote, Hydraulic Brake
Cassette
SRAM GX XG-1175, 10-42T, 11 Speed
Crank
Quarq Prime Carbon 1, Power Ready, 165mm (45.5) | 170mm (48/50.5) | 172.5mm (53/55.5) | 175mm (58/60.5), 40T
Bottom Bracket
Enduro GXP PressFit, BB86
Chain
SRAM Force 1 PC-1170, 11 Speed
Wheels
Front Hub
DT Swiss 350 12x100mm Thru-Axle 28h - Black
Rear Hub
DT Swiss 350, 28 Hole, 12x142mm
Rims
WTB KOM Light i23 TCS 2.0, 28 Hole, Tubeless Ready, 23mm Internal Width
Tires
Kenda Small Block 8 Pro, 2.1”,Tubeless Ready, Folding
Brakes
Brakes
SRAM Force 1, Hydraulic Disc, SRAM CenterLine X 160mm Rotor
Brake Levers
SRAM Force 1
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Easton EC70 AX w/16deg Flare
Headset
FSA Orbit No. 42/ACB - All Black
Seat
Saddle
Norco SL Race w/Crn-Ti Rails - Light Grey
Seatpost
KS LEV Integra Dropper Post, 65mm, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 278 mm | 278 mm |
| Front Center | 566 mm | 578 mm |
| Rake | 50 mm | 49 mm |
| Trail | 58 mm | 58 mm |
| Stack | 497 mm | 517 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 403 mm | 403 mm |
| Wheelbase | 963 mm | 974 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 699 mm | 718 mm |
| Wheels | 26" | 26" |
About this model
Search XR Carbon Force 1 26 belongs to the Norco Search model. There are 121 bikes that carry this model name. You can easily view all of the Norco Search bikes models from 2019, here.
Model range prices
Norco Search XR Aluminum Apex 1 650b 2019 is the most economical model, with a starting price of 1599$. Norco Search XR Carbon Force 1 650b 2019 on the other hand costs 4599$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Norco Search XR Carbon Force 1 26 price was 4599$. Comparing the average cost of a Gravel bike to this one, you will see that Search XR Carbon Force 1 26 price is 86.8% higher.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Search XR Carbon Force 1 26 2019 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Search XR Carbon Force 1 26 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
