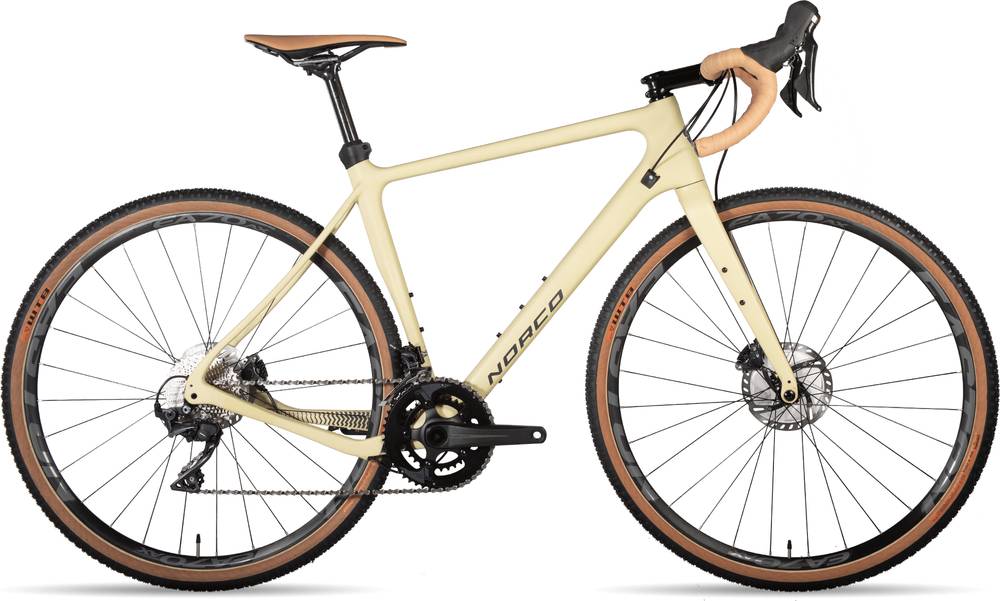

Norco Search XR Carbon Ultegra 700c 2019
2019 Road
Estimate price |
3,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Search XR, Carbon, 12x142mm TA Dropouts
Suspension Fork
Norco Search XR Carbon Fork, 12x100mm TA
Drivetrain
Rear Derailleur
Shimano Ultegra RX RD-RX800-GS, Shadow Plus, 11 Speed
Front Derailleur
Shimano Ultegra FD-R8000, 2 Speed
Shift Levers
Rear: Shimano Ultegra ST-R8020, Hydraulic Brake, 11 Speed, Front: Shimano Ultegra ST-R8020, Hydraulic Brake, 2 Speed
Cassette
Shimano Ultegra CS-HG800, 11-34T, 11 Speed
Crank
Praxis Zayante, 165mm (45.5) | 170mm (48/50.5) | 172.5mm (53/55.5) | 175mm (58/60.5), 48/32T
Bottom Bracket
Praxis M30 PressFit, BB86
Chain
KMC X11, 11 Speed
Wheels
Front Hub
Easton EA70 AX
Rear Hub
Easton EA70 AX
Rims
Easton EA70 AX, 28 Hole, 24mm Internal Width
Tires
WTB Resolute, 42c, Tanwall, Tubless Compatible System, Folding
Brakes
Brakes
Shimano Ultegra BR-R8070, Hydraulic Disc, Shimano SM-RT800 Center Lock/Ice-Tech 160mm Rotor
Brake Levers
Shimano Ultegra ST-R8020
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Easton EA70 AX w/16deg Flare
Headset
FSA Orbit No. 42/ACB - All Black
Seat
Saddle
Norco SL Race w/Cromo Rails - Light Brown
Seatpost
Norco SLR Composite, UD Carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.5 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 277 mm | 279.5 mm | 279.5 mm | 282 mm | 282 mm |
| Front Center | 595 mm | 604 mm | 614 mm | 627 mm | 639 mm |
| Rake | 49 mm | 49 mm | 50 mm | 49 mm | 49 mm |
| Trail | 68 mm | 65 mm | 62 mm | 62 mm | 60 mm |
| Stack | 539 mm | 555 mm | 572 mm | 592 mm | 612 mm |
| Reach | 368 mm | 375 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 522 mm | 540 mm | 557 mm | 575 mm | 592 mm |
| Seat Tube Angle | 74.25 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 120 mm | 138 mm | 155 mm | 178 mm | 198 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 417 mm | 417 mm |
| Wheelbase | 998 mm | 1007 mm | 1018 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 737 mm | 759 mm | 780 mm | 805 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Search XR Carbon Ultegra 700c completes the Norco Search model. Norco launched 121 bikes of this model so far. Take a sneak peek at all Norco Search bikes models from 2019, by clicking here.
Model range prices
Norco Search XR Aluminum Apex 1 650b 2019 is the most economical model, with a starting price of 1599$. Norco Search XR Carbon Force 1 26 2019 on the other hand costs 4599$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Norco released this model in 2019, its price was 3799$. If we compare this with the average Gravel bike cost we notice that the price is 54.31% higher.
Search XR Carbon Ultegra 700c components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Search XR Carbon Ultegra 700c 2019 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Search XR Carbon Ultegra 700c has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
