Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset GRX 800, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
45.5cm
147cm - 154cm
48cm
152cm - 161cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search Reynolds 725 Chromoly Steel
Suspension Fork
Search XR Mid-Modulus Carbon
Drivetrain
Rear Derailleur
Shimano GRX RD-RX810
Front Derailleur
Shimano 105 FD-R7000
Shift Levers
Shimano GRX ST-RX600 11 speed
Cassette
Shimano CS-HG700 11-34T
Crank
Easton EA90 46/30T
Bottom Bracket
Easton PressFit BB86
Chain
KMC X11
Wheels
Front Hub
Sealed Bearing 12x100mm TA
Rear Hub
Sealed Bearing w/Alloy Freehub 12x142mm TA
Rims
WTB ST Light i23 TCS 2.0, Tubeless Ready
Tires
Front: WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall, Rear: WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall
Brakes
Brakes
Front: Shimano GRX BR-RX400 Hydraulic Disc, Rear: Shimano GRX BR-RX400 Hydraulic Disc
Brake Levers
Shimano GRX RX600 Hydraulic
Cockpit
Stem
Norco SL Aluminum - Custom Painted
Handlebar
Easton EA70 AX Aluminum, 16deg Flare
Headset
FSA 44mm Cartridge Bearing
Seat
Saddle
Norco SL Race, Cromo Rails
Seatpost
X-Fusion Manic Gravel 50mm Dropper, Drop-Bar Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm |
| Bottom Bracket Height | 273 mm | 273 mm |
| Front Center | 567 mm | 578 mm |
| Rake | 49 mm | 49 mm |
| Trail | 63 mm | 62 mm |
| Stack | 500 mm | 519 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 100 mm | 120 mm |
| Chainstay Length | 413 mm | 413 mm |
| Wheelbase | 973 mm | 984 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 628 mm | 652 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 147 cm | 152 cm |
| Rider Max Height | 154 cm | 161 cm |

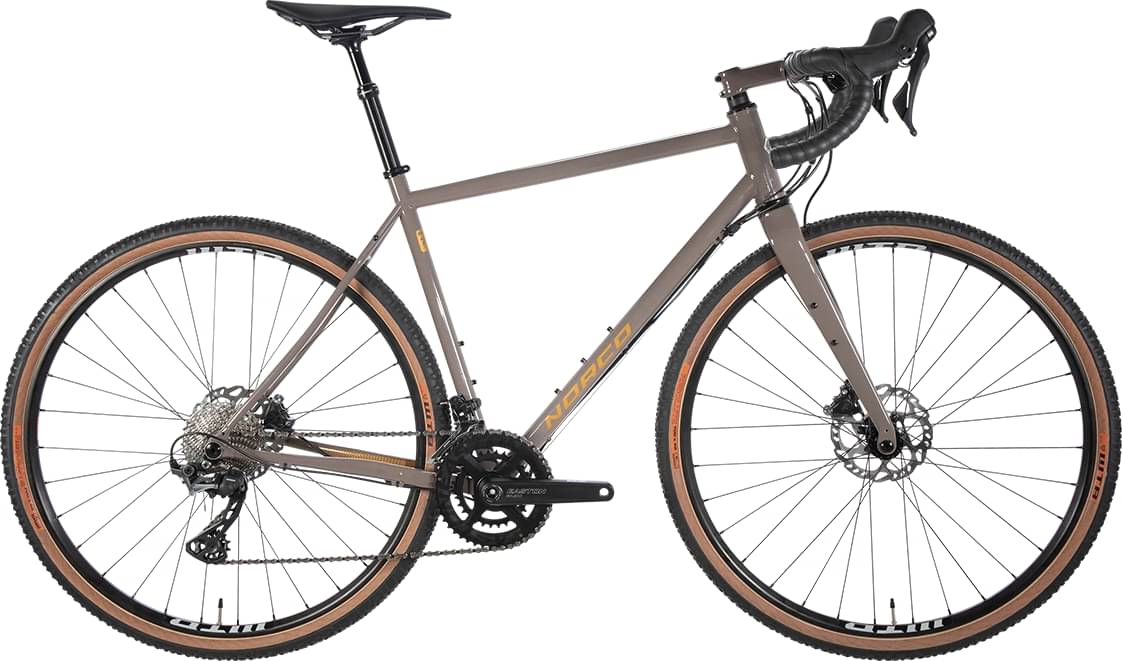

About this model
Search XR S1 650b is a Norco Search model. Norco released 121 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Norco Search XR Flat Bar 2023 is the most affordable bike of this model and has a price of 1349$. On the other hand, Norco Search XR S1 700c 2023, is the most expensive and costs 3299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 3299$. If we compare this with the average Gravel bike cost we notice that the price is 34% more expensive.
Search XR S1 650b components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Search XR S1 650b 2023 bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Search XR S1 650b has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Norco Search XR S1 650b bike has 2 sizes, in the range of 147 cm – 161 cm (4.82 ft – 5.28 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Search XR S1 650b. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
