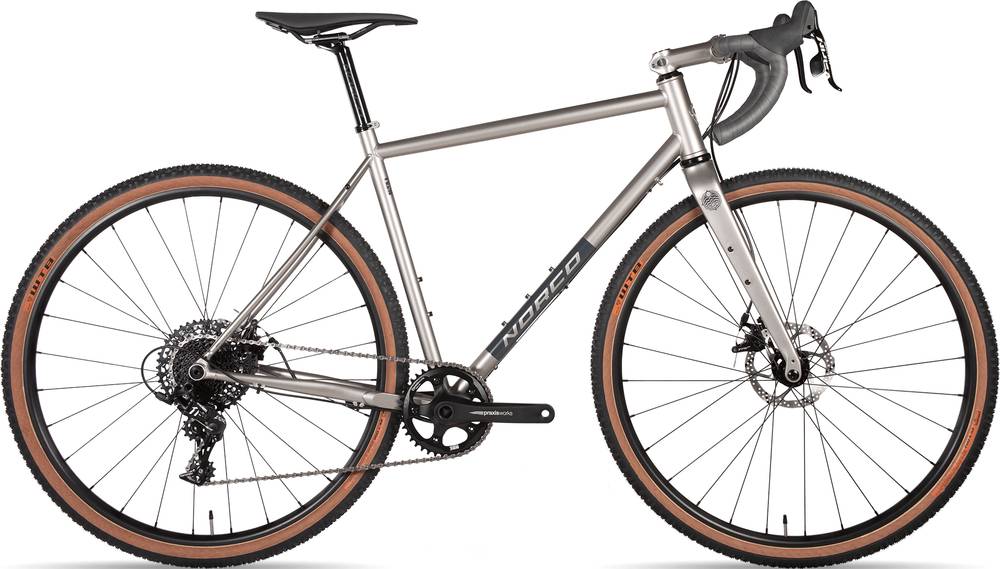

Norco Search XR Steel Apex 1 700c 2019
2019 Road
Estimate price |
2,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Apex 1, Praxis -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Search XR, Reynolds 725 Chromoly Steel, 12x142mm TA Dropouts
Suspension Fork
Norco Search SL High-Modulus Carbon Fork, 12x100mm TA
Drivetrain
Rear Derailleur
SRAM Apex 1, Long Cage, 11 Speed
Shift Levers
Rear: SRAM Apex 1, Mechnical Brake, 11 Speed, Front: SRAM Apex 1, Mechanical Brake, 2 Speed
Cassette
SRAM NX PG-1130, 11-42T, 11 Speed
Crank
Praxis Alba M24, 165mm (45.5) | 170mm (48/50.5) | 172.5mm (53/55.5) | 175mm (58/60.5), 40T
Bottom Bracket
Praxis M24 PressFit, BB86
Chain
SRAM Apex 1 PC-1110, 11 Speed
Wheels
Front Hub
Alloy 12x100mm Thru-Axle 28h - Black
Rear Hub
Alloy, 28 Hole, 12x142mm
Rims
WTB ST i23 TCS 2.0, Tubeless Ready, 23mm Internal Width
Tires
WTB Resolute, 42c, Tanwall, Tubless Compatible System, Folding
Brakes
Brakes
TRP Spyre C Twin Piston, Mechanical Disc, 160mm Rotor
Brake Levers
SRAM Apex 1
Cockpit
Stem
3T ARX II - Silver
Handlebar
Norco Super Flare 16deg - Black
Headset
FSA 44mm Cartridge Bearing
Seat
Saddle
Norco SL Race w/Chromo Rails - Charcoal
Seatpost
Norco SL Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 277 mm | 279.5 mm | 279.5 mm | 282 mm | 282 mm |
| Front Center | 595 mm | 604 mm | 614 mm | 627 mm | 639 mm |
| Rake | 50 mm | 50 mm | 49 mm | 49 mm | 50 mm |
| Trail | 67 mm | 64 mm | 63 mm | 62 mm | 59 mm |
| Stack | 541 mm | 555 mm | 575 mm | 592 mm | 612 mm |
| Reach | 367 mm | 375 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 522 mm | 540 mm | 557 mm | 575 mm | 592 mm |
| Seat Tube Angle | 74.25 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 424 mm | 424 mm |
| Wheelbase | 1006 mm | 1015 mm | 1025 mm | 1042 mm | 1054 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 738 mm | 759 mm | 781 mm | 805 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Search XR Steel Apex 1 700c is a Norco Search model. 121 bikes variations carry this model name so far. You can easily view all of the Norco Search bikes models from 2019, here.
Model range prices
Norco Search XR Aluminum Apex 1 650b 2019 is the most affordable bike of this model and has a price of 1599$. On the other hand, Norco Search XR Carbon Force 1 650b 2019, is the most expensive and costs 4599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Norco released this model in 2019, its price was 2199$. Comparing this to the average Gravel bike price, we see that the price is 11.96% lower.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Norco Search XR Steel Apex 1 700c 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Search XR Steel Apex 1 700c has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
