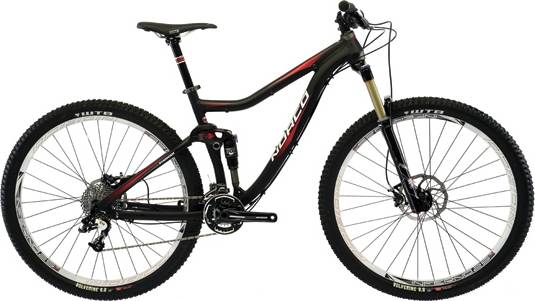

Norco Shinobi 2 2012
2012 Mountain
Estimate price |
3,550$
Weight | 13.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset X9, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shinobi 29er trail frame , 120 mm travel , 6061 aluminum, hydroformed aluminum mainframe tubing
Suspension Fork
RS Revelation 29 140 mm travel 20 mm axle , tapered steer tube
Rear Shock
Fox RP 2 BSD LV large volume air sleeve
Drivetrain
Rear Derailleur
SRAM X9 mid cage
Front Derailleur
SRAM X7
Shift Levers
SRAM X7 trigger
Cassette
SRAM PG 1030 10 sp 11-36T
Crank
FSA V Drive CK-7080 BG/32/22 w BB /7000 10 sp
Bottom Bracket
Comes with crank
Chain
SRAM PC 1031
Pedals
N/A
Wheels
Front Hub
Formula 20 mm sealed bearing
Rear Hub
Formula 142 x 12 mm sealed bearing
Rims
Sun Inferno 25 29er rim
Spokes
DT Champion stainless steel 2.0
Tires
WTB Bronson 29 x 2.2 Race
Brakes
Brakes
Avid Elixer 7 hydraulic disc, 180 mm rotor
Brake Levers
Avid Elixer 7
Cockpit
Stem
Norco short reach MTB trail stem 3D forged
Handlebar
Norco 19 mm rise 760 mm width butted alloy
Grips
Norco Lock on grips
Headset
FSA #57 E sealed ( tapered internal ) 1.5" to 1-1/8"""
Seat
Saddle
WTB Silverado Race SL with chromoly rail
Seatpost
Norco SL double bolt 2014 alloy post 2D forged
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 693 mm | 708 mm | 729 mm | 750 mm |
| Rake | 40 mm | 41 mm | 40 mm | 40 mm |
| Trail | 105 mm | 103 mm | 105 mm | 105 mm |
| Stack | 624 mm | 624 mm | 633 mm | 643 mm |
| Reach | 417 mm | 432 mm | 450 mm | 467 mm |
| Top Tube Length | 596 mm | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 418 mm | 456 mm | 494 mm | 532 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1145 mm | 1161 mm | 1181 mm | 1202 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 795 mm | 780 mm | 786 mm | 810 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Shinobi 2 belongs to the Norco Shinobi model. There are 9 bikes that carry this model name. Take a sneak peek at all Norco Shinobi bikes models from 2012, by clicking here.
Model range prices
Norco Shinobi 3 2012 is the most economical model, with a starting price of 2550$. Norco Shinobi 1 2012 on the other hand costs 5450$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Norco Shinobi 2 price was 3550$. In conclusion, this bike price is 28.53% more expensive than the price of the average Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.45 kg (29.65 lbs), the Shinobi 2 model is slightly heavier than average. In other words, this model is 3.62% heavier than the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox RP 2 BSD LV large volume air sleeve rear shock model, which has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Norco Shinobi 2 2012, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
