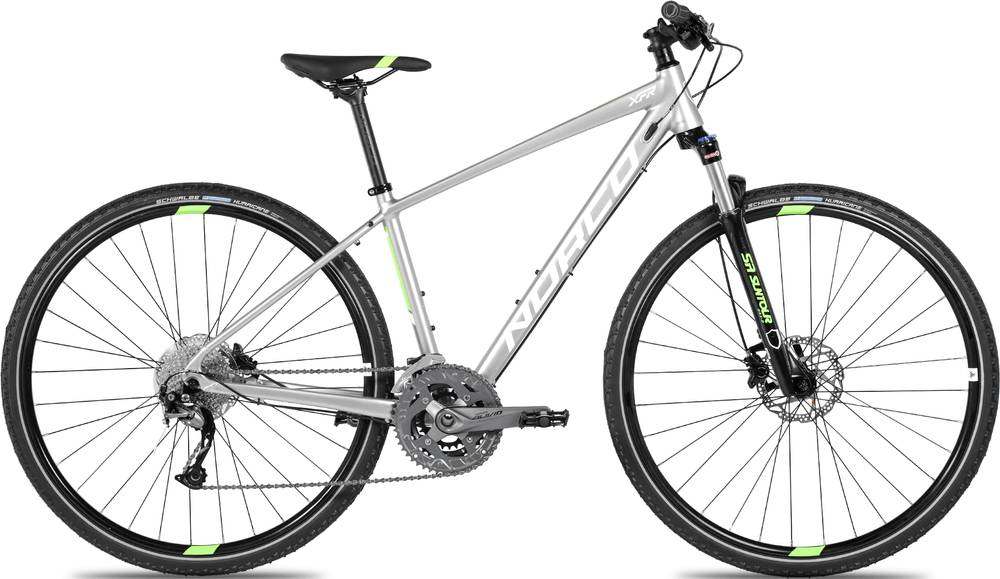

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour NRX D
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XFR Double Butted X6 Alloy w/CS Disc and Flip
Suspension Fork
SR Suntour NRX-D Tapered 75mm w/lock-out
Drivetrain
Rear Derailleur
Shimano Alivio RD-M4000 Shadow - Black
Front Derailleur
Shimano Acera FD-T3000
Shift Levers
Rear: Shimano Acera ST-M3050 9spd, Front: Shimano Acera ST-M3050 3spd
Cassette
Shimano CS-HG300 9spd 11-34T
Crank
Shimano Alivio FC-M4060 48/36/26T - Grey
Bottom Bracket
Shimano HollowTech II
Chain
KMC X9 9spd
Pedals
City - Alloy
Wheels
Front Hub
Shimano Center Lock - Black
Rear Hub
Shimano Center Lock - Black
Rims
WTB SX19 - Black
Tires
Schwalbe Hurricane 700x40c w/RaceGuard
Brakes
Brakes
Shimano Acera BR-M3050 Hydraulic w/160mm
Brake Levers
Shimano Acera ST-M3050
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Norco 25mm Riser - Black
Grips
Slim Grip
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
Norco MTB Women's Race - Black
Seatpost
Norco Alloy 27.2mm - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.65 mm | 1.6 mm | 1.56 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 291 mm |
| Front Center | 611 mm | 626 mm | 642 mm | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 81 mm | 78 mm | 75 mm | 72 mm |
| Stack | 608 mm | 619 mm | 629 mm | 640 mm |
| Reach | 357 mm | 375 mm | 392 mm | 409 mm |
| Top Tube Length | 526 mm | 551 mm | 576 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 100 mm | 107.5 mm | 115 mm | 130 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1058 mm | 1074 mm | 1089 mm | 1107 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 63 mm |
| Standover Height | 706 mm | 739 mm | 763 mm | 798 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |
About this model
XFR 2 Womens is a Norco Xfr model. Norco launched 76 bikes of this model so far. Take a sneak peek at all Norco Xfr bikes models from 2018, by clicking here.
Model range prices
Norco XFR 5 Step-Thru 2018 is the most economical model, with a starting price of 399$. Norco XFR 1 2018 on the other hand costs 999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 899$. Doing a quick comparison, we notice that XFR 2 Womens price is 59.96% more expensive than the average cost of a Hybrid bike.
Overview of components
Fork
The XFR 2 Womens comes factory-installed with the SunTour NRX D fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the XFR 2 Womens bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The XFR 2 Womens has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
XFR 2 Womens comes in 4 sizes, that range from 145 cm – 183 cm (4.76 ft – 6 ft). In conclusion, you won’t have a problem finding one that suits you.
