Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XFR Double Butted X6 Alloy w/CS Disc and Flip
Suspension Fork
SR Suntour NVX 75mm
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 - Black
Front Derailleur
Shimano FD-TY710
Shift Levers
Rear: Shimano ST-EF500 Easy-Fire 8spd - Black, Front: Shimano ST-EF500 Easy-Fire 3spd - Black
Cassette
Shimano CS-HG200 12-32T 8spd
Crank
Shimano FC-TY701 48/38/28T - Black
Bottom Bracket
Cartridge Bearing BB
Chain
KMC Z-72
Pedals
City - Black
Wheels
Front Hub
Alloy Sealed Disc Hub
Rear Hub
Alloy Sealed Disc Hub
Rims
WTB SX19 - Black
Tires
Impac CrossPac 700x38c
Brakes
Brakes
Tektro Mechanical Disc w/160mm rotor
Brake Levers
Shimano Easy-Fire w/2-finger lever
Cockpit
Stem
Alloy - Black
Handlebar
Norco Alloy 15mm Riser - Black
Grips
Slim Grip
Headset
Zero Stack Headset w/15mm spacer
Seat
Saddle
Norco MTB Women's Sport - Black
Seatpost
Alloy - Black 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.65 mm | 1.6 mm | 1.56 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 291 mm |
| Front Center | 611 mm | 626 mm | 642 mm | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 81 mm | 78 mm | 75 mm | 72 mm |
| Stack | 608 mm | 619 mm | 629 mm | 640 mm |
| Reach | 357 mm | 375 mm | 392 mm | 409 mm |
| Top Tube Length | 526 mm | 551 mm | 576 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 100 mm | 107.5 mm | 115 mm | 130 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1058 mm | 1074 mm | 1089 mm | 1107 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 63 mm |
| Standover Height | 706 mm | 739 mm | 763 mm | 798 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |

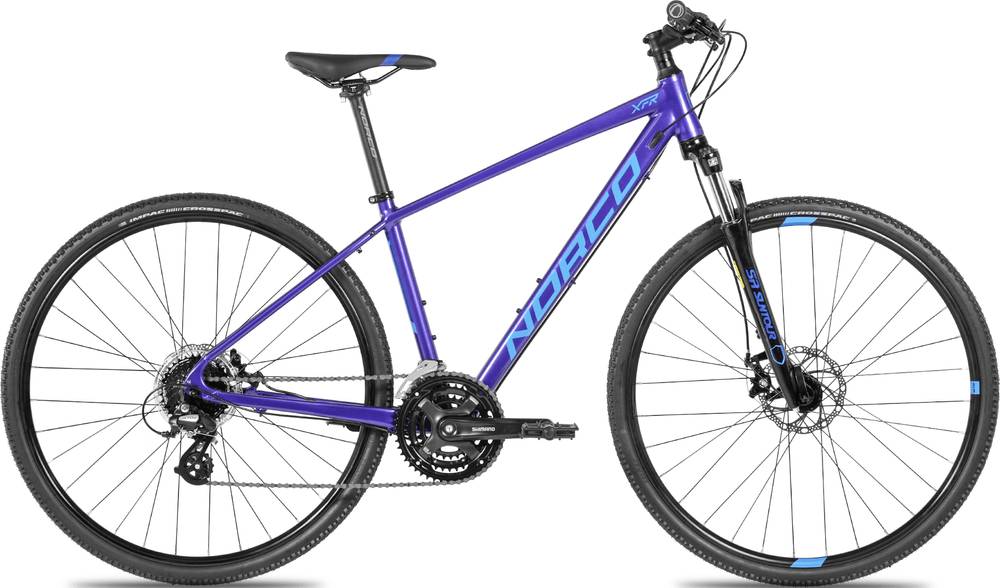

Model Overview
XFR 4 Womens belongs to the Norco Xfr model. Norco released 76 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Norco XFR 5 Step-Thru 2018 is the most economical model, with a starting price of 399$. Norco XFR 1 2018 on the other hand costs 999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 499$. Comparing the average cost of a Hybrid bike to this one, you will see that XFR 4 Womens price is 12.63% smaller.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the XFR 4 Womens model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco XFR 4 Womens has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
XFR 4 Womens comes in 4 sizes, that range from 145 cm – 183 cm (4.76 ft – 6 ft). In short, you can easily find one that suits you.
